The AFG – 4000 Series Arbitrary Function Generator from GWINSTEK is a versatile and high – performance signal generation solution. It is the first series from the brand to feature an 8 – inch large touch screen (for models above 35MHz), providing users with an intuitive and convenient operation experience. With a wide range of frequency bandwidths from 25MHz to 250MHz, it can meet diverse signal generation needs in various fields such as electronics research, education, and industrial testing.
Key Features
- Multi – channel Options:
- Single – channel models: AFG – 4125E/4125AE (25MHz), suitable for applications that require a single signal source.
- Dual – channel models: AFG – 4225E/4235/4260/4280/4210H/4225H, offering frequency bandwidths of 25MHz/35MHz/60MHz/80MHz/100MHz/250MHz. The dual – channel models support related settings like frequency coupling, amplitude coupling, and tracking, enabling quick configuration of two – channel output.
- Abundant Built – in Waveforms: Includes sine, square, triangle, ramp, pulse, noise, harmonic wave, and arbitrary wave. There are 146 arbitrary waveforms available for editing and output, providing great flexibility in signal generation.
- High Resolution: Features a minimum frequency resolution of 1μHz, ensuring precise control over the generated signals’ frequency.
- Variable Sampling Rates:
- AFG – 4225H: 1.25GSa/s
- AFG – 4235/4260/4280/4210H: 500MSa/s
- AFG – 4125E/4125AE/4225E: 125MSa/s
- Different Amplitude Resolutions:
- 14 – bit for 25MHz entry – level models (AFG – 4125E/4125AE/4225E)
- 16 – bit for 35MHz – 250MHz models (AFG – 4235/4260/4280/4210H/4225H)
- Memory Depth:
- Dual – channel 25MHz – 250MHz models: 10M per channel
- Single – channel 25MHz entry – level models (AFG – 4125E/4125AE): 16k per channel
- Diverse Modulation Functions: Supports AM, DSB – AM, FM, PM, PWM, ASK, PSK, BPSK, QPSK, FSK, 3FSK, 4FSK, OSK, SUM and other modulation signal outputs, meeting the requirements of various communication and modulation applications.
- Useful Built – in Functions: Includes sweep, burst, and counter functions, which are helpful for signal analysis and testing.
- Special Feature of AFG – 4125AE: Built – in power amplifier with 10W power output and a 10 – times amplification factor, capable of producing a maximum output of 22V. The independent input/output power amplifier has a bandwidth range of 5Hz to 100kHz, suitable for audio signal and other related applications.

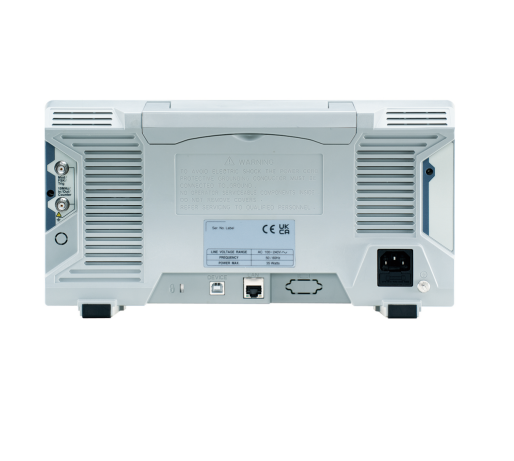

- Convenient Interfaces:
- 25MHz models (AFG – 4125E/4125AE/4225E): USB Host/Device interfaces
- 35MHz – 250MHz models: USB Host/Device and LAN interfaces
- User – friendly Display: 8” TFT LCD with 800*480 resolution. Models above 35MHz come with a multi – touch display, allowing users to easily input parameters by touching the screen, such as frequency, amplitude, or DC offset, with a numeric input window popping up for intuitive input.
| – | Single Channel | Dual Channel | ||||||
| Model | AFG-4125E | AFG-4125AE* | AFG-4225E | AFG-4235 | AFG-4260 | AFG-4280 | AFG-4210H | AFG-4225H |
| Frequency range (Sine) | 25MHz | 25MHz | 35MHz | 60MHz | 80MHz | 100MHz | 250MHz | |
| Sample rate (Sa/s) | 125M | 500M | 1.25G | |||||
| Amplitude resolution | 14 bits | 16 bits | ||||||
| Memory length | 16k/CH | 10M/CH | ||||||
| Touch panel | N/A | Yes | ||||||
| Communication Interface | USB(Host, Device) | USB(Host, Device), LAN | ||||||
