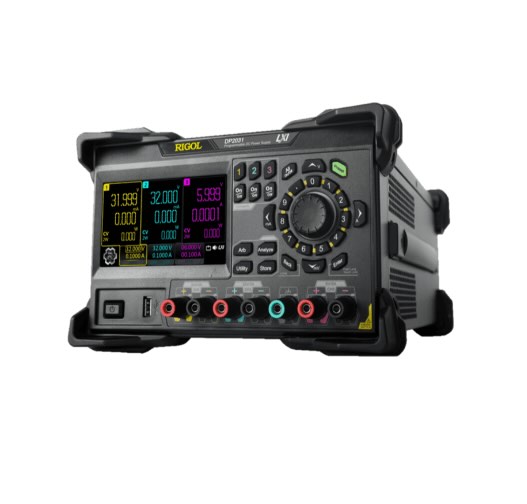

Rigol DP2031 DC power supply

The RIGOL DP2000 Series is a high-speed, high-accuracy programmable linear DC power supply designed for demanding test and analysis applications. It features three isolated channels with a total power of 222W, and is defined by its ultra-low ripple and noise ( <350μVrms / 2mVpp) and fast <50µs transient response time, ensuring a pure and stable output. A key innovation of the DP2000 is its High-Speed Arbitrary mode, which allows for the creation of complex waveforms with dwell times as low as 1ms, perfect for emulating dynamic power conditions. With features like automatic internal series/parallel connections and a comprehensive color display, the DP2000 is a flexible and powerful instrument for any R&D or production test bench.

Key Features

• Ultra-Low Ripple and Noise: Provides an exceptionally pure power source, minimizing interference and ensuring high-purity signals for sensitive device testing.
• Fast Transient Response: A transient response time of less than 50µs ensures voltage stability even with rapidly changing loads, protecting the device under test.
• Three Isolated Channels: Features three independent and fully isolated channels (CH1: 32V/3A, CH2: 32V/3A, CH3: 6V/5A) with a total power of 222W.
• High-Speed Arbitrary Mode: Generate complex arbitrary waveforms of up to 512 points with a minimum dwell time of 1ms, ideal for battery simulation and dynamic testing.
• Automatic Series/Parallel Connections: CH1 and CH2 can be connected in series or parallel internally through the menu, simplifying setup and providing up to 64V or 6A from a single terminal pair.
• High Programming/Readback Resolution: Offers excellent precision with 1mV / 0.1mA programming resolution and 0.1mV / 0.1mA readback resolution.
• Comprehensive Connectivity: Standard with USB, LAN, RS232, and Digital I/O interfaces for easy system integration and remote control.
