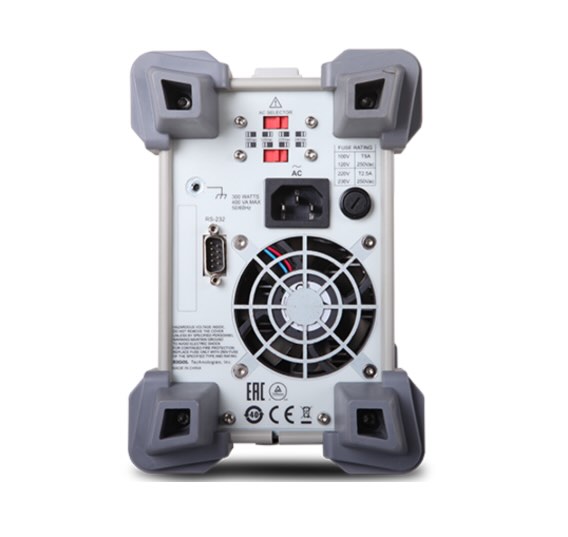

Rigol DP711 DC power supply

The RIGOL DP700 Series is a high-performance, single-channel programmable linear DC power supply designed for excellent value and reliability. It is defined by its exceptionally low ripple and noise ( <500μVrms / 3mVpp), providing a highly pure power source for a variety of benchtop applications. The series features a fast transient response time of less than 50μs, ensuring stable output even under changing load conditions. With a clear 3.5-inch TFT display, an excellent load and line regulation rate of <0.01%, and optional high-resolution mode (1mV/1mA), the DP700 is an ideal and affordable choice for educational labs, R&D benches, and production testing.

Key Features

• Excellent Purity: An ultra-low ripple and noise design ensures a clean and reliable power output, crucial for sensitive electronic testing.
• Fast Transient Response: A rapid transient response time of <50μs guarantees output voltage stability when the load current changes.
• Superb Regulation: Features an excellent load and line regulation rate of <0.01% + 2mV, maintaining a stable output under all conditions.
• Optional High Resolution: An available high-resolution option provides 1mV/1mA resolution for more precise control and measurement.
• Timing Output Function: Supports programmable timed output (optional) with up to 2,048 groups, allowing for basic automated test sequences.
• Comprehensive Protection: Includes over-voltage, over-current, and over-temperature protection (OVP/OCP/OTP) to safeguard both the power supply and the device under test.
• Clear User Interface: A 3.5-inch TFT display and an intuitive front panel layout make for easy operation and monitoring.
