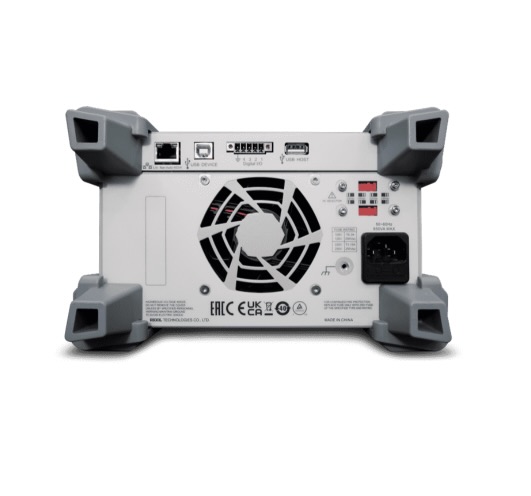

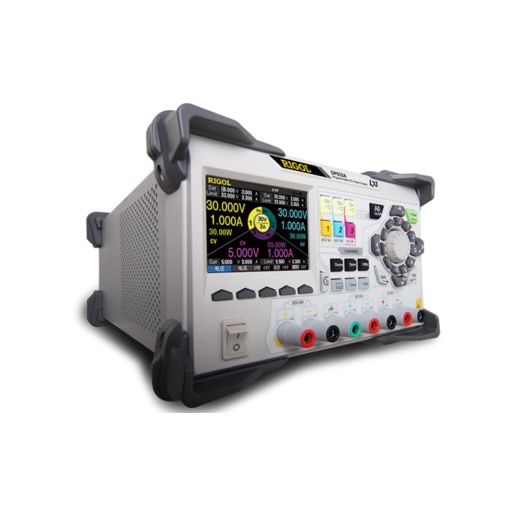

Rigol DP932U DC power supply

The RIGOL DP900 Series is a new generation of high-performance, three-channel programmable linear DC power supplies, designed for exceptional purity and precision. Its most defining characteristic is its ultra-low ripple and noise ( <350μVrms / 2mVpp), ensuring a pure power output for sensitive applications. The series features a fast transient response time of less than 50μs, a high-resolution 4.3-inch color touch screen, and a total power output of up to 210W. With innovative functions like one-key series-parallel connection for CH1 & CH2, and a precise arbitrary waveform function, the DP900 series is an ideal choice for a wide range of applications, from R&D and production to education.

Key Features

• Ultra-Low Ripple and Noise: Delivers an exceptionally clean and stable output, critical for powering sensitive circuits and devices.
• Three Independent Isolated Channels: Provides three fully controllable channels with a total power of up to 210W.
• Fast Transient Response: A <50μs transient response time ensures the output voltage remains stable even with rapid changes in the load.
• High Resolution: Offers programming resolution as fine as 1mV / 1mA and readback resolution down to 0.1mV / 0.1mA (DP932A).
• Intuitive Touchscreen: A 4.3-inch color touch screen provides a modern and easy-to-use interface for quick setup and monitoring.
• One-Key Series/Parallel: Allows CH1 and CH2 to be easily connected in series (up to 64V) or parallel (up to 6A) internally without external wiring.
• Arbitrary Waveform Function: Supports editing and outputting arbitrary waveforms with a minimum dwell time of 100ms for simulating various power scenarios.
