Hantek DPO6204B Oscilloscope

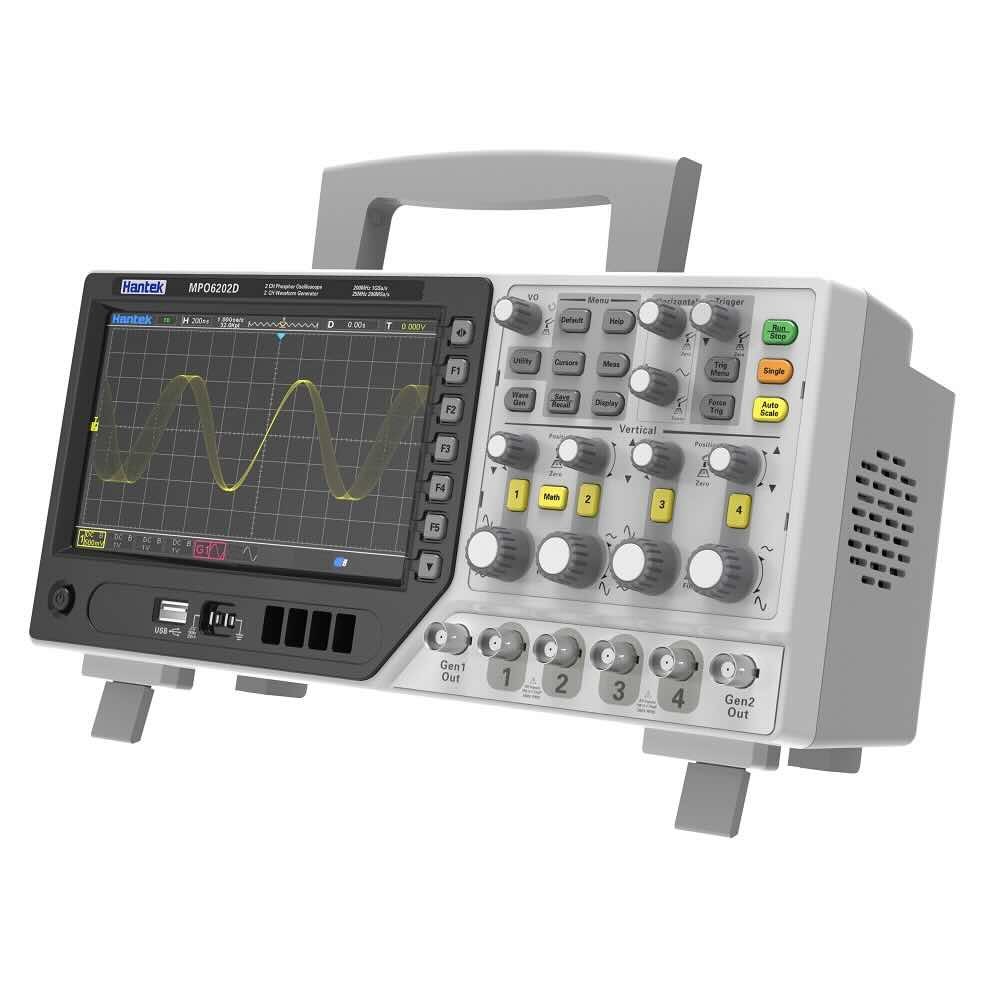

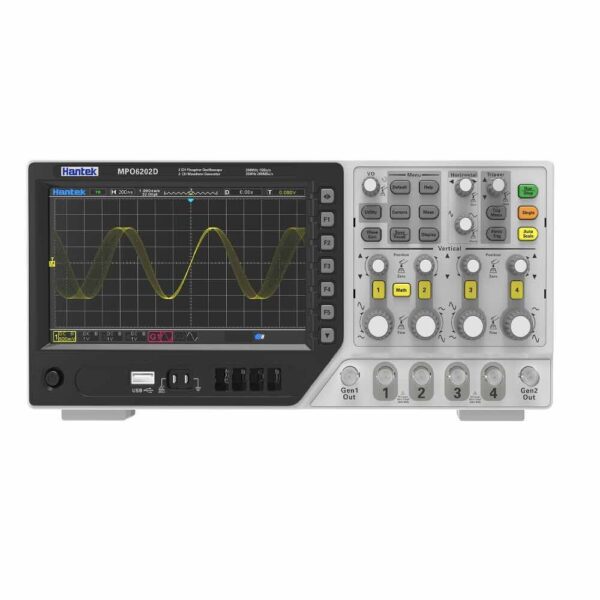

The Hantek DPO6004B/DPO6004C/MPO6004D Series is a versatile 4-channel digital phosphor oscilloscope designed for professionals in electronics, embedded systems, and communications. It integrates six essential instruments into one compact device, enhancing efficiency and simplifying your test bench.

Key Features

• Six-in-One Functionality: Combines a 4-channel oscilloscope, 16-channel logic analyzer, 2-channel waveform generator, digital voltmeter, serial protocol analyzer, and FFT spectrum analyzer.
• High Performance:
  • Bandwidth options of 80 MHz, 100 MHz, and 200 MHz.
  • Real-time sampling rate up to 1 GSa/s.
  • Memory depth up to 64 Mpts.
  • Waveform capture rate up to 400,000 wfms/s in quick acquisition mode.
• Advanced Display: 7-inch capacitive touch screen with 256-level intensity grading and color temperature display for detailed waveform visualization.
• Comprehensive Triggering and Decoding:
  • Supports up to 16 trigger types, including edge, pulse width, and video.
  • Serial protocol decoding for UART, I2C, SPI, LIN, and CAN.
• Versatile Waveform Generator:
  • 2-channel signal source with 13 built-in waveforms.
  • Supports 4 sets of arbitrary waveforms, 200 MSa/s sampling rate, and 8 Kpts waveform length.
• Enhanced Analysis Tools:
  • 42 automatic waveform measurements with statistical functions.
  • Bode diagram function for amplitude and phase-frequency analysis.
  • Math operations including addition, subtraction, multiplication, division, FFT, differential, integral, and square root.
  • Event search and segmented acquisition up to 80,000 sections.

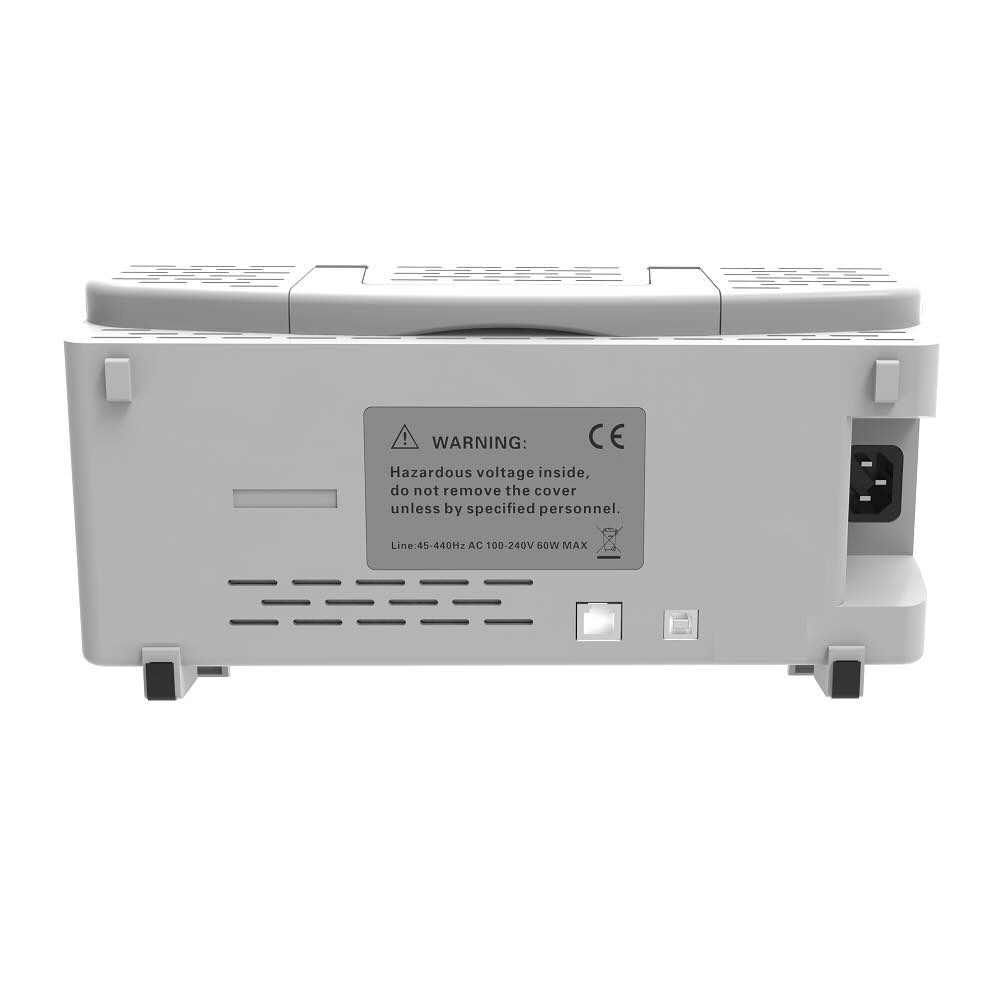

• Robust Connectivity:
  • Standard interfaces: USB Device, USB Host, LAN.
  • Optional interfaces: HDMI, UART.
  • Compliant with LXI CORE 2011 standards for remote control and integration into automated test systems.
