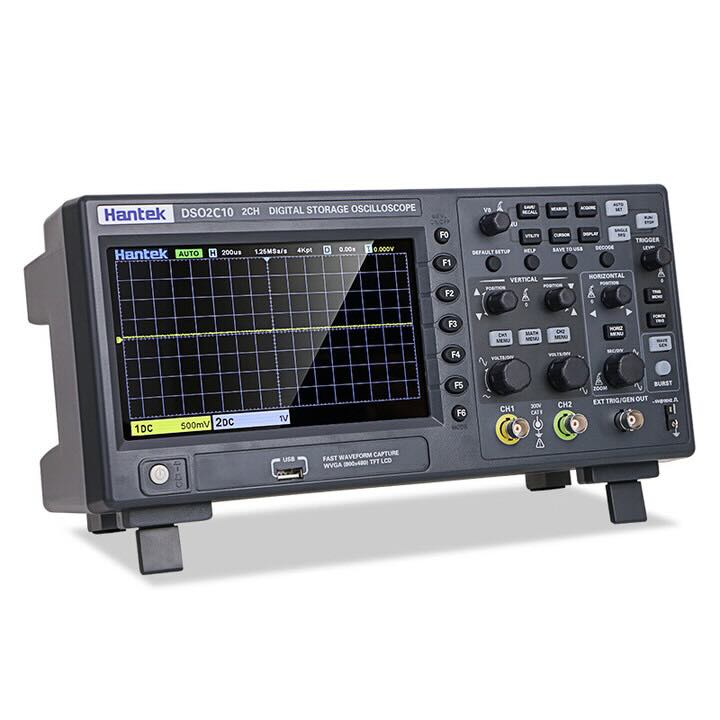

Hantek DSO2C10 Oscilloscope

The Hantek DSO2000 Series is a range of cost-effective digital storage oscilloscopes designed for versatile applications in communication, aerospace, embedded systems, computer science, research, and education. These models combine high-performance features with user-friendly functionality, making them ideal for both professional and educational use.

Key Features

1. High Performance Oscilloscope Capabilities
   • Bandwidth: 100 MHz (DSO2C10/DSO2D10) or 150 MHz (DSO2C15/DSO2D15), suitable for high-frequency signal analysis.
   • Sampling Rate: Up to 1 GSa/s (single channel), 500 MSa/s (dual channels), ensuring precise signal capture.
   • Memory Depth: 8M points for single channels (4M points for dual channels), reducing waveform distortion and enabling long-term signal observation.
2. Integrated Waveform Generator (DSO2D10/DSO2D15)
   • 1-channel arbitrary waveform generator (AWG) with 25 MHz maximum frequency.
   • Supports standard waveforms (sine, square, ramp, noise, etc.) and arbitrary waveforms (4 KSa length).
   • Modulation capabilities for burst and amplitude-modulated signals.
3. Advanced Triggering and Decoding
   • 14 Trigger Modes: Including edge, pulse width, video, slope, timeout, window, and serial protocol triggers (UART, LIN, CAN, SPI, I2C).
   • Protocol Analysis: Built-in decoding for RS232/UART, I2C, SPI, CAN, and LIN, with real-time monitoring of bus activities.
4. Comprehensive Measurement and Analysis
   • 32 Auto Measurements: Including frequency, period, RMS, rise/fall time, duty cycle, and more, with real-time statistics (max, min, standard deviation).
   • Dual DVMs: 3-digit digital voltmeter and 6-digit hardware frequency indicator for precise voltage and frequency measurements.
   • Mathematical Operations: FFT (with multiple window functions), addition, subtraction, multiplication, division, and waveform storage (CSV, images, reference waveforms).
5. User-Friendly Interface and Connectivity
   • 7-inch WVGA TFT LCD: 800×480 resolution with 16 million colors for clear waveform display.
   • USB Host/Device Ports: Support for one-click screenshot, data storage, and remote control via SCPI commands.
   • Multiple Acquisition Modes: Normal, peak detect, average (4–128x), and high-resolution (up to 12-bit) for versatile signal analysis.
