keysight DSOX1202G Oscilloscope
Original price was: $1,295.00.$1,050.00Current price is: $1,050.00.

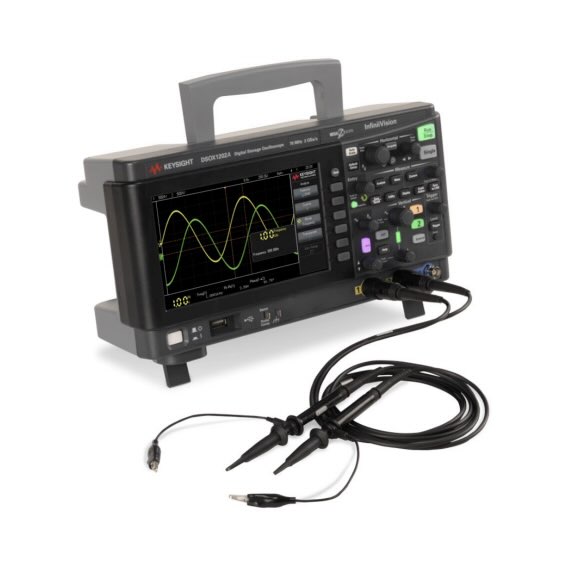

The Keysight DSOX1202G is a 6-in-1, 2-channel, 70MHz scope that is upgradable. It enhances the professional features of the DSOX1202A by adding a 20MHz function generator (WaveGen) and a Frequency Response Analyzer (Bode plot). It is the ideal tool for design and education labs.
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Description
The Keysight InfiniiVision 1000 X-Series oscilloscopes are engineered to provide quality, industry-proven technology at an unbelievably low price. It is easy to get professional measurements and accessible expertise right at your fingertips. These oscilloscopes are built around Keysight-custom technology that leverages more than 60 years of expertise, giving you confidence in your measurements. Testing is fast and easy with a simple, intuitive user interface on a 7-inch TFT LCD WVGA display.
Key Features:
- 6-in-1 Instrument Integration: The 1000 X-Series saves you money and valuable bench space by integrating six instruments into one. This includes a powerful oscilloscope, a 20 MHz function generator (WaveGen) with modulation capability on “G” models , a hardware-based serial protocol analyzer , a Frequency Response Analyzer (Bode plot) on “G” models , a 3-digit digital voltmeter (DVM) , and a 5-digit frequency counter.
- Efficient Measurement Speed: You can see more signal detail and easily capture infrequent glitches with a fast waveform update rate of up to 200,000 waveforms per second.
- Powerful Graphical and Software Analysis: Get professional-level functionality with industry-leading software analysis. This includes standard hardware-based serial bus analysis for popular standards like I2C, SPI, UART/RS-232, CAN, and LIN on DSOX models. The “G” models also include Frequency Response Analysis for gain and phase Bode plots.
- Intuitive Interface and Built-in Training: The oscilloscopes are easy to use with a simple user interface and built-in help. You can access language-localized help for any button by simply pressing and holding it. The built-in training signals enable students and new users to quickly learn how to capture and analyze signals.
- Convenient Connectivity and Automation: The series comes with standard USB host and device ports, as well as a LAN port. You can remotely control the oscilloscope and visualize multiple measurements with the included BenchVue Software , or use the web-based virtual front panel via the LAN connection.
| Model | DSOX1202A |
DSOX1202G with function generator | DSOX1204A |
DSOX1204G with function generator |
| Bandwidth | 70 MHz(base bandwidth) 100 MHz(D1202BW1A) 200 MHz(D1202BW2A) |
70 MHz(base bandwidth) 100 MHz(D1200BW1A) 200 MHz(D1200BW2A) |
||
| Analog channels | 2 | 4 | ||
| External trigger | Fron panel input (Displayable as a 3rd digital channel) |
Back panel input (not displayed) |
||
| Sample rate per channel (max) |
2 GSals (one-or two-channel operation) 1 GSa/s (if external trigger view is turned on) |
2 GSa/s(one-or half-channelloperation)
1 GSals (three-or four-channel operation) |
||
| Memory depth per channel (max) |
2M points (one-or two-channel operation) 1M points (if external trigger view is turned on) |
2M points(one-or half-channell operation) 1M points (three-or four-channel operation) |
||
| WaveGen | Not available | 20-MHz function generator | Not available | 20-MHz function generator |
| Bode plot | Not available | Standard | Not available | Standard |
