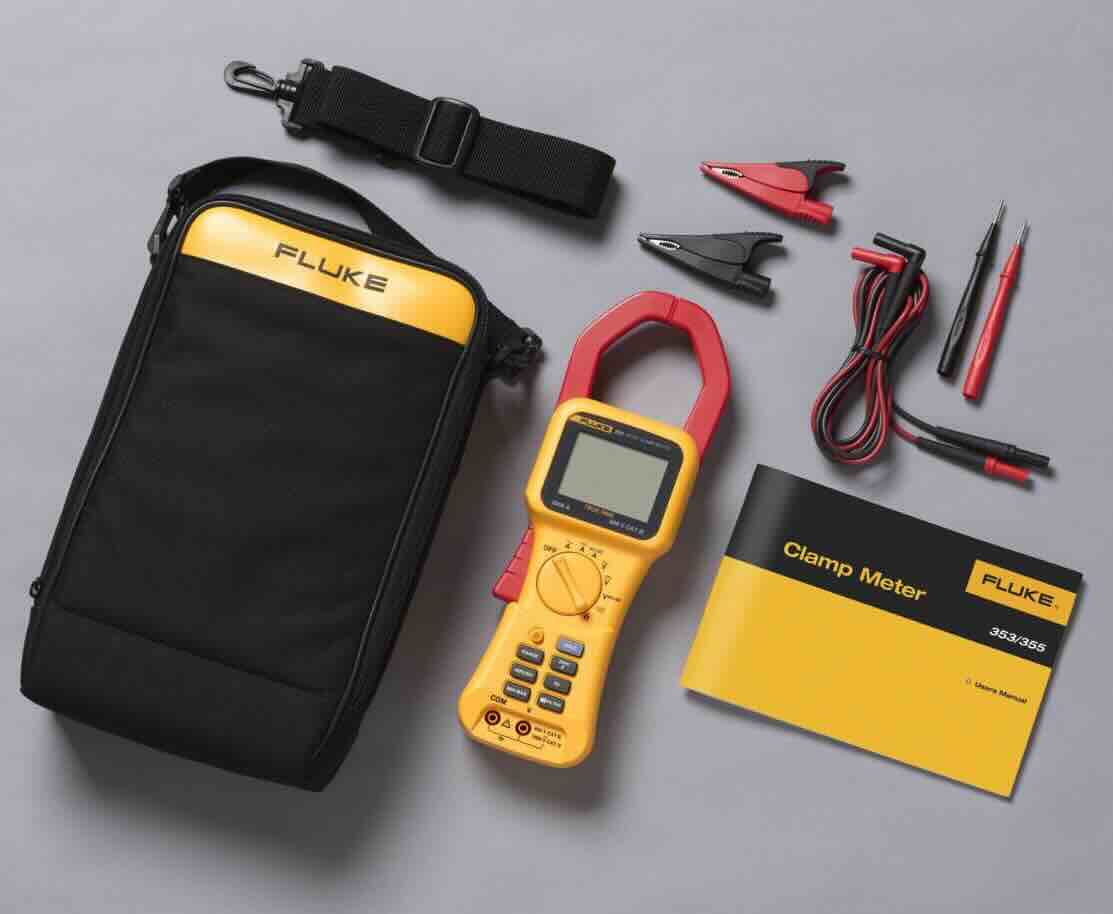

Fluke 355 Clamp Meter

Name: Fluke 355 Clamp Meter
Brand: Fluke
SKU: Fluke 355
Availability: InStock

Original price was: $992.00.Current price is: $850.00.

Fluke 355: A True-RMS clamp meter for high-current applications. Measures up to 2000A AC/DC with a large 58mm jaw, inrush current mode, and a CAT IV 600V safety rating. Ideal for industrial and utility use.

Add to compare

Add to wishlist

Shipping & Delivery

Courier delivery

Our courier will deliver to the specified address

2-3 Days

From $20

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From $40

Warranty 1 year

More details

Free 30-Day returns

More details

Description

The Fluke 355 is a rugged and versatile True-RMS digital clamp meter engineered for high-current AC/DC applications. Its most prominent feature is the ability to reliably measure very high currents, up to 2000A DC and 1400A AC, making it an essential tool for utility workers, industrial service technicians, and electrical contractors. The meter’s extra-wide 58mm jaw easily accommodates large or multiple conductors. It also includes an inrush current mode to accurately capture motor start-up surges and a low-pass filter to ensure stable readings on noisy electrical loads. With a high safety rating of CAT IV 600V / CAT III 1000V, the Fluke 355 is a comprehensive and safe solution for demanding industrial and utility environments.

Key Features

High Current Measurement: Measures a wide range of currents, including 2000A AC + DC True-RMS, 1400A AC, and 2000A DC.
Extra-Large Jaw Capacity: A large 58 mm (2.3 in) jaw opening can easily clamp around large conductors or multiple cables.
Inrush Current Mode: Accurately and repeatedly captures and measures motor ‘power-on’ surge currents.
High Safety Rating: CAT IV 600 V and CAT III 1000 V ratings provide enhanced user protection in high-energy industrial environments.
Integrated Low-Pass Filter: Smooths out the readings from noisy loads to provide more stable and reliable measurements.
All-in-One Functionality: Measures voltage (up to 1000V DC / 600V AC), resistance, and frequency, making it a versatile troubleshooting tool.
Large Backlit Display: Ensures that readings are easily visible, even in poorly lit conditions.

Electrical Specifications
Current measurement DC and AC 10 Hz to 100 Hz	Range	40 A / 400 A / 2000 A / 1400 AC rms
	Resolution	10 mA / 100 mA / 1 A
	Accuracy	A: 1.5% rdg + 15 digits A: 1.5% rdg + 5 digits
	Trigger level for Inrush	0.50 A / 5.0 A / 5 A
	Trigger level for Hz filter OFF	2.50 A / 2.5 A / 8 A
	Trigger level for Hz filter ON	0.50 A / 2.5 A / 8 A
Crest Factor (50/60 Hz)	Range	40 A / 400 A / 2000 A / 1400 AC rms
Crest Factor (50/60 Hz)	Crest Factor¹	2 @ 33 A, 2.4 @ 27 A 2 @ 330 A, 2.4 @ 270 A 2 @ 1000 A, 2.4 @ 833 A
Current measurement AC 100.1 Hz to 1 kHz	Range	40 A / 400 A / 2000 A; 1400 AC rms
	Resolution	10 mA / 100 mA / 1 A
	Accuracy	10 A: 3.5% rdg + 15 digits 10 A: 3.5% rdg + 5 digits
	Trigger level for Inrush	0.50 A / 5.0 A / 5 A
	Trigger level for Hz filter OFF	2.50 A / 2.5 A / 8 A
	Trigger level for Hz filter ON	0.50 A / 2.5 A / 8 A
Voltage measurement DC and AC 10 Hz to 100 Hz (600 V and 1000 V ranges have 10% over range to 660 V and 1100 V respectively.)	Range	4 V / 40 V / 400 V / 600 V AC rms / 1000 VDC
	Resolution	1 mV / 10 mV / 100 mV / 1 V
	Accuracy	1% rdg + 10 digits 1% rdg + 5 digits
	Trigger level for Hz filter OFF	0.25 V / 6 V
	Trigger level for Hz filter ON	0.25 V / 6 V
Voltage measurement AC 100.1 Hz to 1 kHz (600 V and 1000 V ranges have 10% over range to 660 V and 1100 V respectively.)	Range	4 V / 40 V / 400 V / 600 V ac rms
	Resolution	1 mV / 10 mV / 100 mV / 1 V
	Accuracy	3% rdg + 10 digits 3% rdg + 5 digits
	Trigger level for Hz filter OFF	0.050 V / 0.25 V / 6 V
	Trigger level for Hz filter ON	0.050 V / 0.25 V / 6 V
Ohms measurement	Range	4 kΩ / 40 kΩ / 400 kΩ
	Resolution	0.1 Ω / 1 Ω / 10 Ω / 100 Ω
	Accuracy	1.5% + 5 digits
