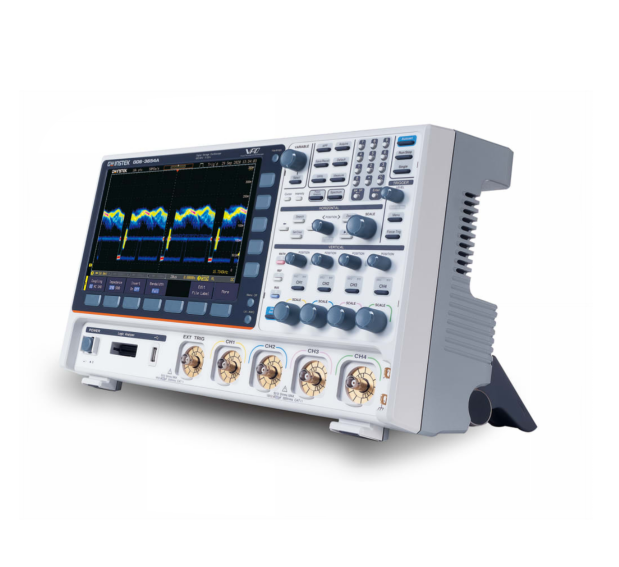

The GDS-3000A Series from GW Instek is a high-performance digital storage oscilloscope (DSO)designed for engineers and technicians who demand precision, speed, and advanced analysis capabilities. With bandwidths ranging from 200 MHz to 500 MHz, these oscilloscopes are ideal for a wide range of applications, including embedded system debugging, power electronics, communications, and education.
Key Features:
✔ High Bandwidth & Sampling Rate – Up to 500 MHz bandwidth and 5 GSa/s real-time sampling for accurate signal capture.
✔ Large Display & Intuitive UI – 10.1-inch capacitive touchscreen with a user-friendly interface for efficient operation.
✔ Deep Memory & High Resolution – 125 Mpts memory depth and 12-bit high-resolution mode for detailed waveform analysis.
✔ Advanced Triggering & Analysis – Supports serial bus decoding (I2C, SPI, UART, CAN, LIN) and power analysis tools.
✔ Versatile Connectivity – USB, LAN, HDMI, and USB Host for easy data transfer and remote control.
✔ Portable & Robust Design – Lightweight and compact for lab or field use.
Applications:
-
Embedded system development & debugging
-
Power electronics & energy efficiency testing
-
Automotive & industrial communications
-
Education & research
| Model | Bandwidth | Channels | Type |
|---|---|---|---|
| GDS-3654A | 650MHz | 4 | Digital Storage Oscilloscope |
| GDS-3652A | 650MHz | 2 | Digital Storage Oscilloscope |
| GDS-3354A | 350MHz | 4 | Digital Storage Oscilloscope |
| GDS-3352A | 350MHz | 2 | Digital Storage Oscilloscope |
