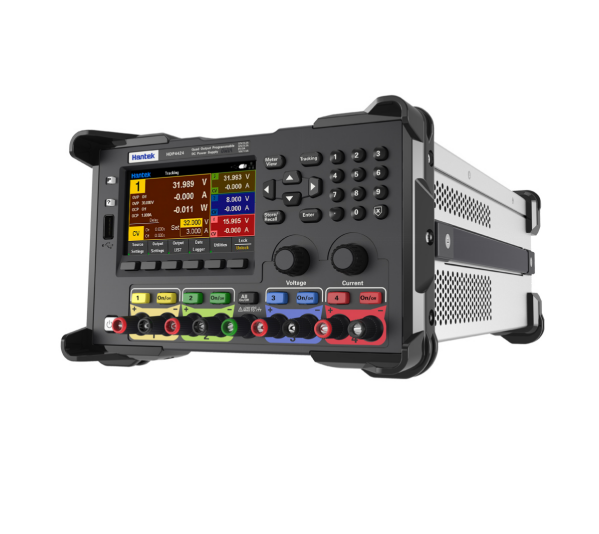

Hantek HDP4424B DC Power Supply

The Hantek HDP4000 Series is a high-performance, four-channel programmable linear DC power supply designed to meet the demanding requirements of research laboratories, industrial testing, and automated production lines. With advanced features and robust design, it offers precise control, versatility, and reliability for various applications.

Key Features

• Four Electrically Isolated Channels: Each channel is independently adjustable, providing flexibility for complex testing scenarios.
• High Resolution & Low Noise: Achieves up to 1mV/1mA resolution (0.1mV/1μA for HDP4000S series) with low ripple noise (<350μVrms / 2mVpp), ensuring clean and stable outputs.
• Fast Transient Response: Responds to load changes within ≤50μs, maintaining output stability during dynamic conditions.
• Multiple Operating Modes: Supports independent, series, parallel, and tracking modes, allowing for versatile configurations to suit various testing needs.
• Comprehensive Protection: Features overvoltage, overcurrent, overtemperature, and short-circuit protection with user-configurable thresholds to safeguard both the power supply and connected devices.
• Intuitive 4.3-Inch Color Display: Real-time visualization of voltage, current, power values, and waveforms for all channels, facilitating easy monitoring and analysis.
• Advanced Functions:
  • List Function: Create complex voltage/current sequences by editing individual steps with specific durations.
  • Data Recorder: Log output parameters over time and display them graphically for trend analysis.
  • Storage Capability: Save up to 10 groups of settings, including sequences, delays, and panel configurations.

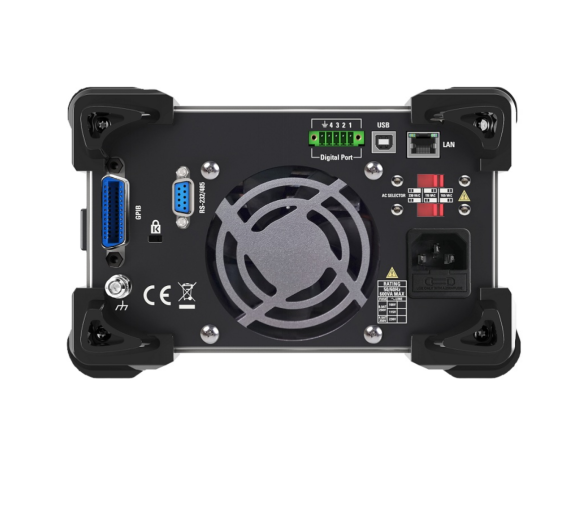

• Rich Interface Options: Equipped with USB HOST, USB DEVICE, LAN, digital I/O, RS232/RS485 (for HDP4324B/HDP4424B), and GPIB (for HDP4324H/HDP4424H) interfaces, facilitating seamless integration into various systems.
• User-Friendly Design: Features a digital keyboard for precise input, keyboard lock function to prevent accidental changes, and intelligent temperature-controlled fan for efficient cooling with reduced noise.
