ITECH IT9121C Power Meter

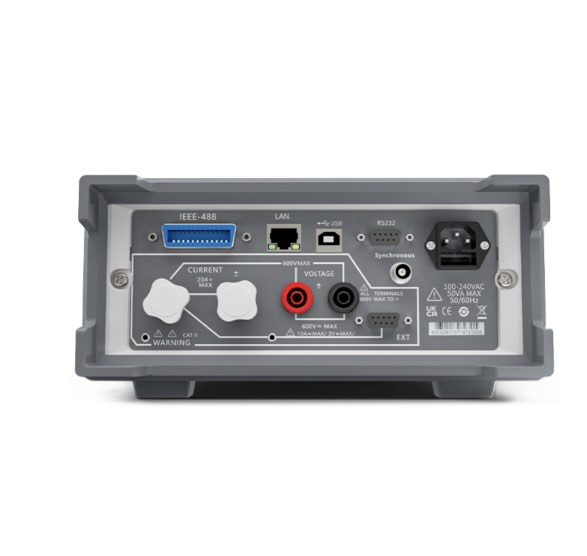

The ITECH IT9100 series power meter offers a maximum input of 1000 Vrms and 50 Arms, with a measurement bandwidth of 100 kHz. It is designed to measure a variety of parameters including voltage, current, power, and frequency. With a basic voltage and current accuracy of 0.1%, this power meter is widely used in applications for testing motors, household appliances, and UPS systems. The device comes standard with USB, RS232, and LAN communication interfaces, and also features interfaces for USB-based peripherals to save measurement data to external storage.

Key Features:

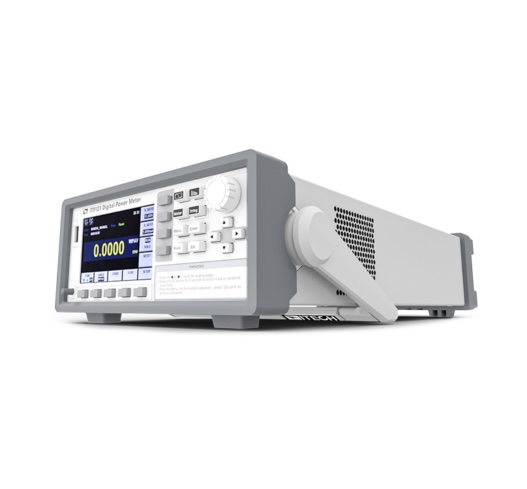

• Display and Interface: The IT9100 features a 4.3-inch color LCD (TFT). Users can also define their own interface display style.
• Simultaneous Measurement: The device can measure voltage, current, power, and harmonics at the same time.
• Harmonic Analysis: It includes a harmonic measurement function that can analyze up to the 50th harmonic.
• Energy Integration: The power meter has rich integrating functions for the measurement of electric energy.
• Oscilloscope Function: An oscilloscope function is included to display input voltage and current waveforms, allowing users to observe trends without needing an external scope.
