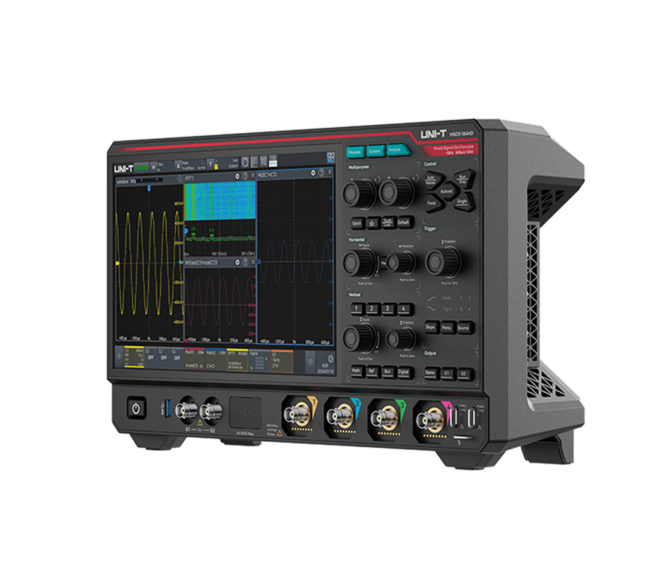

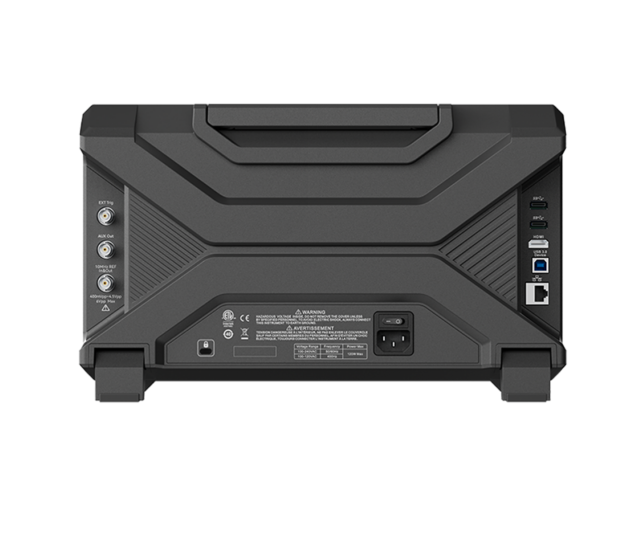

UNI-T MSO5054HD Oscilloscope

Key Features

1. Superior Performance Specifications
   • Bandwidth: 350 MHz to 1 GHz (model-dependent), supporting high-frequency signal analysis.
   • Real-Time Sample Rate: Up to 5 GSa/s, ensuring detailed capture of fast transient signals.
   • Memory Depth: 500 Mpts for long-term waveform recording without loss of detail.
   • Waveform Capture Rate: Up to 1,500,000 wfms/s (sequence mode), enabling rapid detection of rare events.
2. 16-Bit Enhanced Resolution
   • Combines a 12-bit ADC with 4-bit ERES to achieve 16-bit high-resolution mode, reducing inherent noise and improving precision for low-voltage signals.
   • Ideal for applications requiring fine-grained waveform details, such as power integrity analysis and analog circuit debugging.
3. Multi-Functional Integration
   • Oscilloscope + Logic Analyzer: Simultaneously analyze analog and digital signals, with 16 digital channels for parallel data acquisition.
   • 2-Channel Arbitrary Waveform Generator: Produces complex waveforms (up to 50 MHz) for stimulus-response testing.
   • Spectrum Analyzer: Built-in FFT with up to 4 Mpts for frequency-domain analysis (0–2.5 GHz), supporting waterfall plots and multi-trace detection.
   • Protocol Analyzer: Decodes 15 主流协议 (e.g., UART, I2C, CAN, LIN, MIL-STD-1553), with trigger and timing analysis for protocol validation.
4. Advanced Analysis Tools
   • Power Analysis: Evaluates power quality, harmonic distortion, inrush current, switching losses, and efficiency, with support for Safe Operating Area (SOA) testing.
   • Timing & Jitter Analysis: Measures pulse width, setup/hold times, and jitter for digital buses, generating compliance reports for standards like I2C and SPI.
   • 56 Automatic Measurements: Covers voltage, frequency, phase, and power parameters, with statistical trend graphs for signal behavior analysis.
5. User-Centric Design
   • 10.1-inch Touchscreen: Intuitive interface for waveform navigation and parameter adjustment.
   • WebServer Control: Enables remote operation and data logging via Ethernet.
   • FIR Filter: Continuously adjustable bandwidth (50 Hz–500 MHz) for noise suppression in real-time.
   • Hardware-Accelerated Mask Testing: Achieves 6σ standard compliance (≤3.4 defects/M samples) in under 1 second, enhancing testing efficiency.
