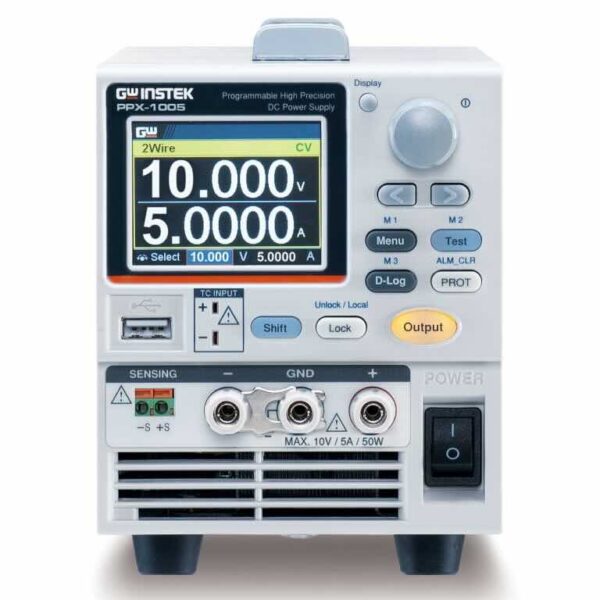

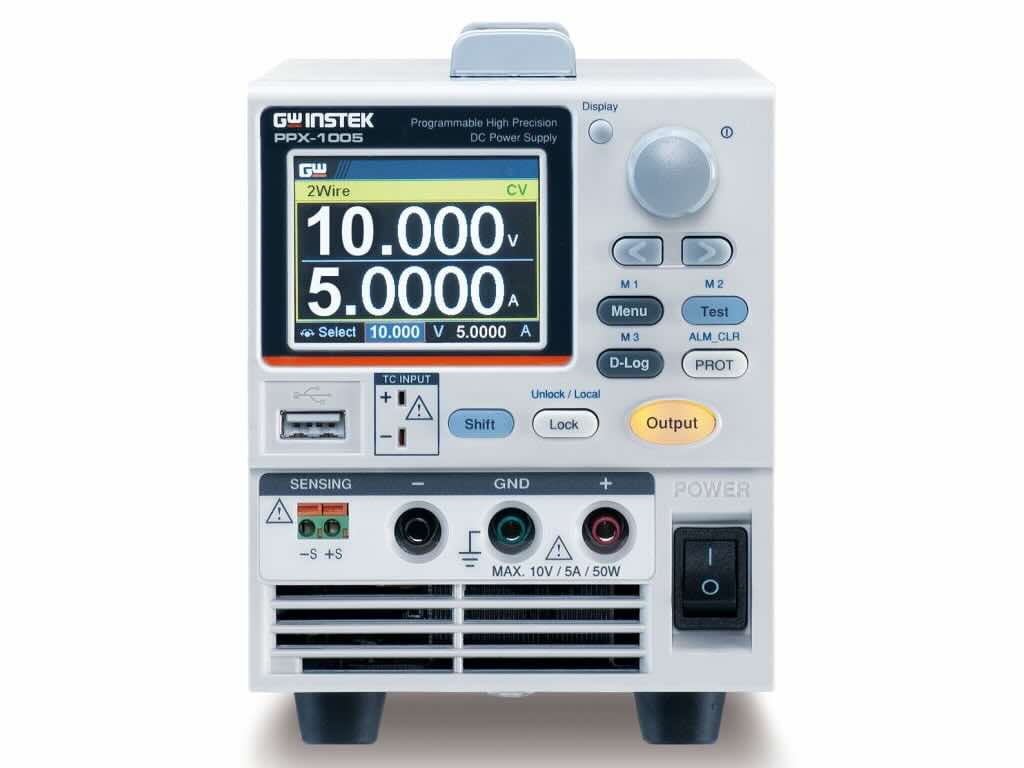

The GW Instek PPX Series is a programmable DC power supply designed for R&D, manufacturing, and automated testing applications. With precise voltage & current control, multi-range output, and advanced programmability, the PPX Series ensures reliable power delivery for semiconductor testing, IoT devices, aerospace, and more.
Key Features:
✔ Wide Voltage & Current Ranges – Multiple models offering up to 1000W with flexible voltage/current combinations.
✔ High Resolution & Accuracy – 1mV/0.1mA resolution with 0.01% basic accuracy for ultra-precise power control.
✔ Multi-Channel & Multi-Range Operation – Supports series/parallel connections for higher voltage or current demands.
✔ Advanced Programming & Sequencing – Built-in arbitrary waveform generator (ARB) and 100-step sequence mode for dynamic power simulations.
✔ Fast Transient Response – Minimizes voltage fluctuations for stable DUT (Device Under Test) performance.
✔ Comprehensive Protection – OVP, OCP, OTP, and reverse polarity protection to safeguard sensitive components.
✔ Remote Control & Automation – USB, LAN, GPIB (optional), and analog control for seamless integration into test systems.
| DC Output Mode | PPX-1005 | PPX-2002 | PPX-2005 | PPX-3601 | PPX-3603 | PPX-10H01 |
| Output voltage | 10.000V | 20.000V | 20.000V | 36.000V | 36.000V | 100.00V |
| Output current | 5.0000A | 2.0000A | 5.0000A | 1.0000A | 3.0000A | 1.0000A |
| Output power | 50W | 40W | 100W | 36W | 108W | 100W |
