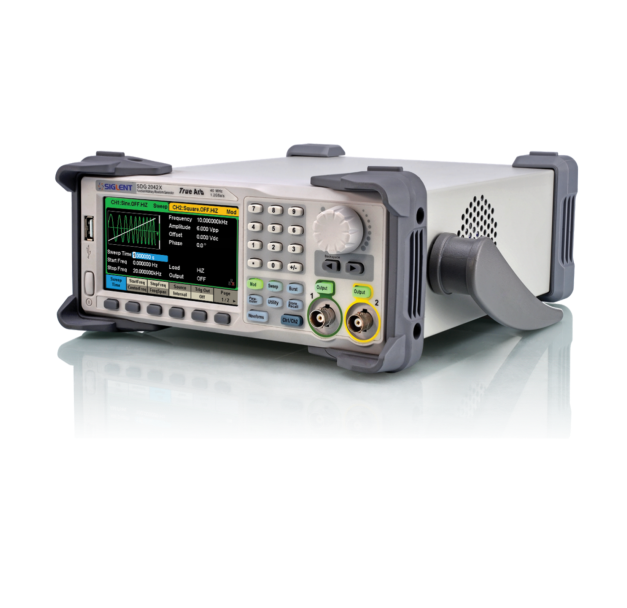

Siglent SDG2042X Waveform Generator

Exceptional Technical Specifications

• Bandwidth and Amplitude: With a maximum bandwidth of 120 MHz and a substantial maximum output amplitude of 20 Vpp, these generators can produce high – power signals suitable for driving a wide variety of loads. The 80 dB dynamic range ensures high – fidelity output, minimizing distortion and delivering clean, accurate waveforms.
• Sampling System: Equipped with a high – performance sampling system featuring a 1.2 GSa/s sampling rate and 16 – bit vertical resolution, the SDG2000X series captures and reproduces waveforms with extraordinary precision. No matter how complex the waveform, every minute detail is faithfully preserved, enabling users to work with highly accurate signals.
• Waveform Customization: Thanks to the innovative TrueArb technology, users have extensive control over waveform creation. They can define waveforms with lengths ranging from 8 to 8 Mpts and set the sample rate flexibly, anywhere from 1 μSa/s to 75 MSa/s. This level of customization allows for the generation of highly specialized waveforms tailored to specific experimental or testing requirements.

Impressive Key Features

• EasyPulse Technology: The innovative EasyPulse technology is a standout feature. It enables the generation of Square or Pulse waveforms with significantly lower jitter. This technology also provides a broad range and extremely high precision in adjusting pulse widths and rise/fall times, making it ideal for applications that demand precise timing control, such as digital circuit testing.
• Abundant Modulation Types: The series supports a comprehensive array of analog and digital modulation types, including AM, DSB – AM, FM, PM, PSK, FSK, ASK, and PWM. This extensive modulation support makes the SDG2000X series an invaluable tool for testing and developing communication systems, where different modulation schemes need to be simulated and analyzed.
• Versatile Functions: It comes with a suite of useful functions, such as Sweep and Burst, which are essential for frequency response testing and generating pulsed signals. The Harmonics mode support allows users to study the harmonic content of signals, while the high – precision Frequency Counter enables accurate frequency measurement of both the generated signals and external input signals.

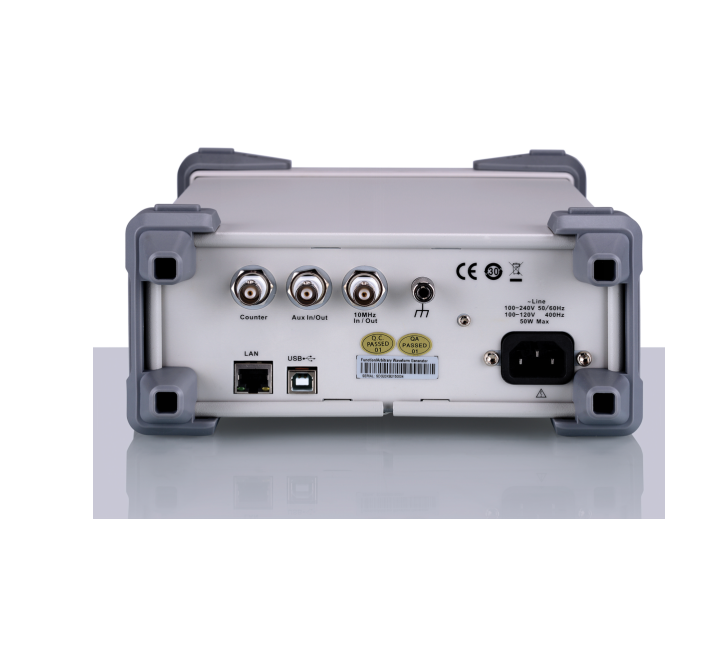

• Convenient Interfaces and Display: Standard interfaces like USB Device, USB Host, LAN (VXI – 11), and an optional GPIB interface ensure seamless integration with other devices and systems. The 4.3” touchscreen display simplifies operation, providing an intuitive and user – friendly way to configure settings, monitor waveforms, and view measurement results.
