Siglent SPD3303X-E DC Power Supply

Name: Siglent SPD3303X-E DC Power Supply
Brand: Siglent
SKU: SPD3303X-E
Availability: InStock

Original price was: $459.00.Current price is: $350.00.

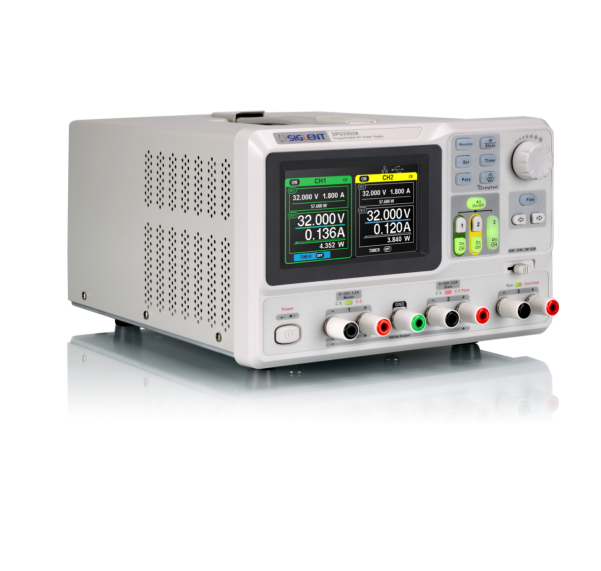

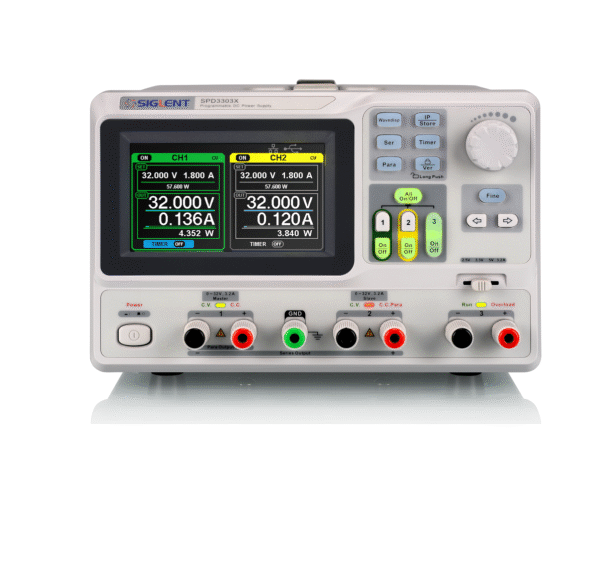

Siglent’s SPD3303X-E Programmable Linear DC Power Supplies have a 4.3 inch TFT-LCD display, support Remote Programming and have Real Time Wave Displays. The SPD3000X Series has three isolated outputs; two adjustable channels and one selectable channel from 2.5 V, 3.3 V, and 5 V. It also has output short and overload protection and can be used in production and development.

Add to compare

Add to wishlist

Shipping & Delivery

Courier delivery

Our courier will deliver to the specified address

2-3 Days

From $20

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From $40

Warranty 1 year

More details

Free 30-Day returns

More details

Description

The SIGLENT SPD3303X and SPD3303X-E Series Programmable Linear DC Power Supplies offer versatile, reliable power solutions for electronics development, production, and testing. With three independent and isolated outputs, intuitive controls, and advanced programming capabilities, these supplies are designed to meet the demands of both bench-top and automated testing environments.

Key Features

Three Independent Outputs:
- Two adjustable channels (CH1/CH2): 0–32 V, 0–3.2 A each.
- One fixed-voltage channel (CH3): Selectable between 2.5 V, 3.3 V, or 5 V at 3.2 A.
- Total power: 220 W, with series (up to 60 V) and parallel (up to 6.4 A) operation modes for expanded voltage/current capabilities.
High-Resolution Display:
- 4.3-inch true-color TFT-LCD screen (480 x 272 pixels) for real-time voltage/current monitoring and waveform display.
- SPD3303X: 5-digit voltage (1 mV resolution) and 4-digit current (1 mA resolution) display.
- SPD3303X-E: 4-digit voltage (10 mV resolution) and 3-digit current (10 mA resolution) display.
Precision and Accuracy:
- SPD3303X: Voltage/current setting/readback accuracy of ±(0.03% of reading + 10 mV/mA).
- SPD3303X-E: Voltage/current accuracy of ±(0.5% of reading + 2 digits).
Programmable Control:
- Timing function for scheduled output steps, ideal for automated testing.
- Free PC software (Easypower) and LabVIEW driver support for remote programming via USB/LAN.
Reliability and Usability:

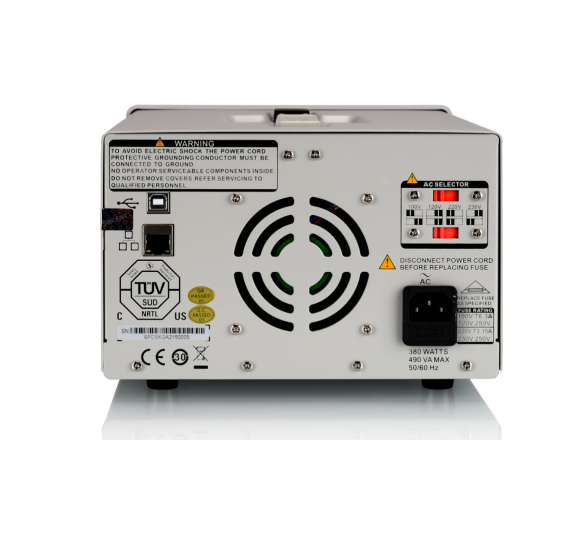

- Universal input (100–230 V AC) for global compatibility.
- Intelligent temperature-controlled fan minimizes noise and ensures stable operation.
- Short-circuit and overload protection for device safety.
- Five internal storage groups for saving/recalling system parameters, with expandable data storage.
