Tonghui TH6402B DC Power Supply

Key Features

• Dual – Language Interface: Offers fresh and simple system settings with Chinese and English operation interfaces for easy use by a wide range of users.
• High – Resolution Display: Equipped with a 24 – bit color 4.3 – inch TFT LCD screen, featuring a resolution of 480 x 272, which clearly shows various parameters.
• Multi – Channel Design: Provides three or four channels (depending on the model). The channels support independent adjustment and can perform series, parallel, or synchronous output, enhancing its application flexibility.
• High Performance: Boasts high precision and stability, along with low ripple and noise, ensuring reliable power supply for sensitive devices and tests.

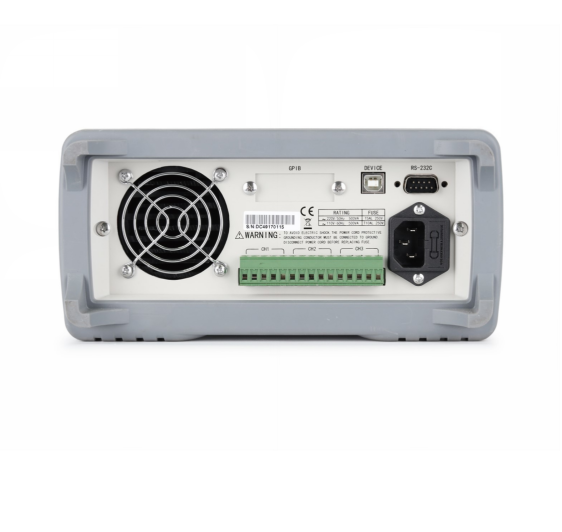

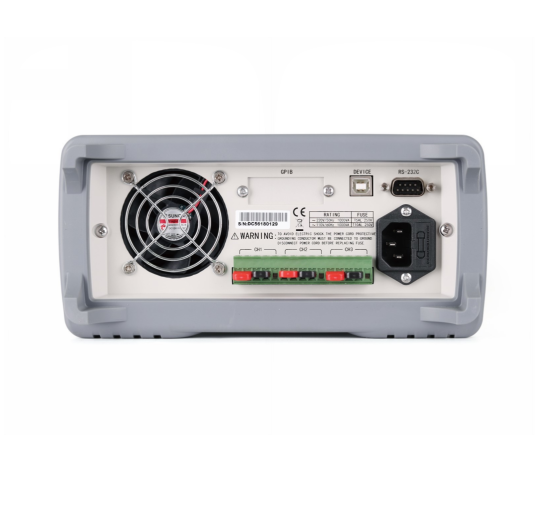

• Compact Size: Has a 1/2 2U super mini size, and the output and sampling terminals are located on both the front and rear panels, making it space – saving and convenient for wiring.
• Programmable and Timing Functions: Allows for programmable output of voltage and current. The timing output function can be set from 0.1 to 99999.9 seconds, enabling automated and scheduled testing.
• Multiple Control and Communication Options: Comes with a rotary knob and numeric keyboard for local parameter setting. Supports standard SCPI communication protocol and can be connected via RS232, USB HOST, USB DEVICE, and GPIB interfaces. It also enables firmware upgrades via USB flash and software monitoring through a computer for seamless integration into automated systems.
• Safety and Protection: Includes an output control switch, remote measurement function to compensate for line voltage drop, fully isolated circuit with support for positive and negative reverse connection, over – voltage protection, and an intelligent temperature control fan to ensure safe and stable operation.
• Convenient Functions: Has a copy screen function for easy data recording and sharing.

Applications

• R & D and design verification common test.
• Production line table routine testing and maintenance.
• Automated device integration testing.
• Solar photovoltaic simulation test.
• New power car simulation test.
• Teaching laboratory.
