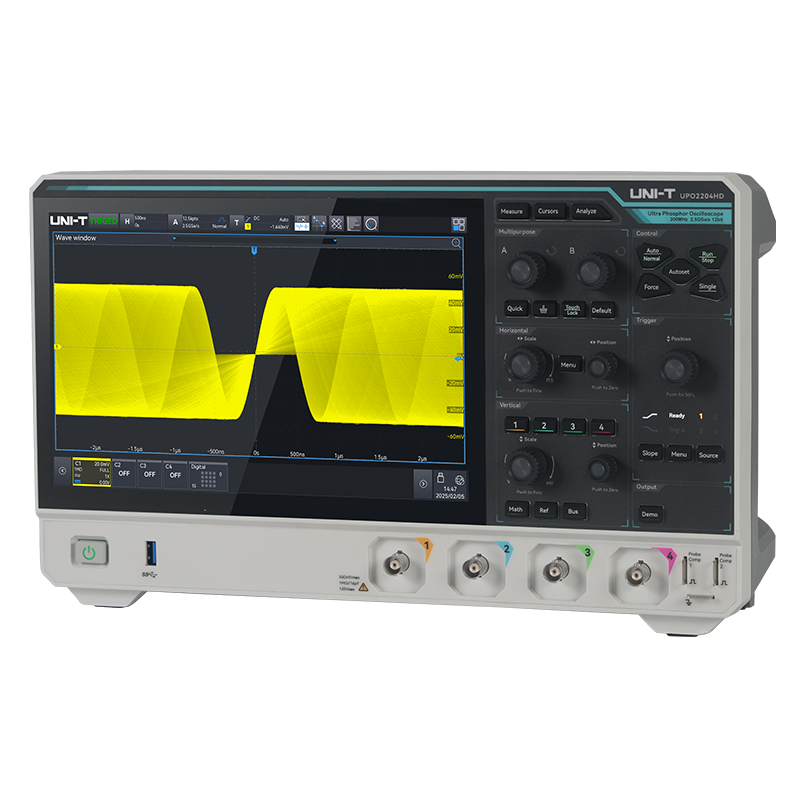

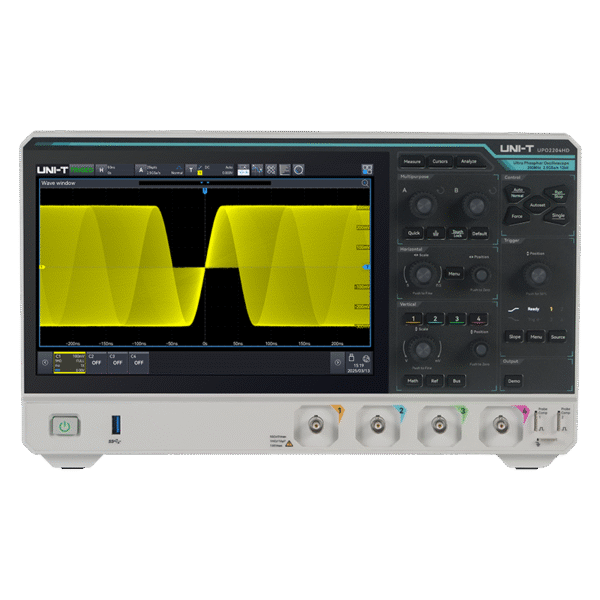

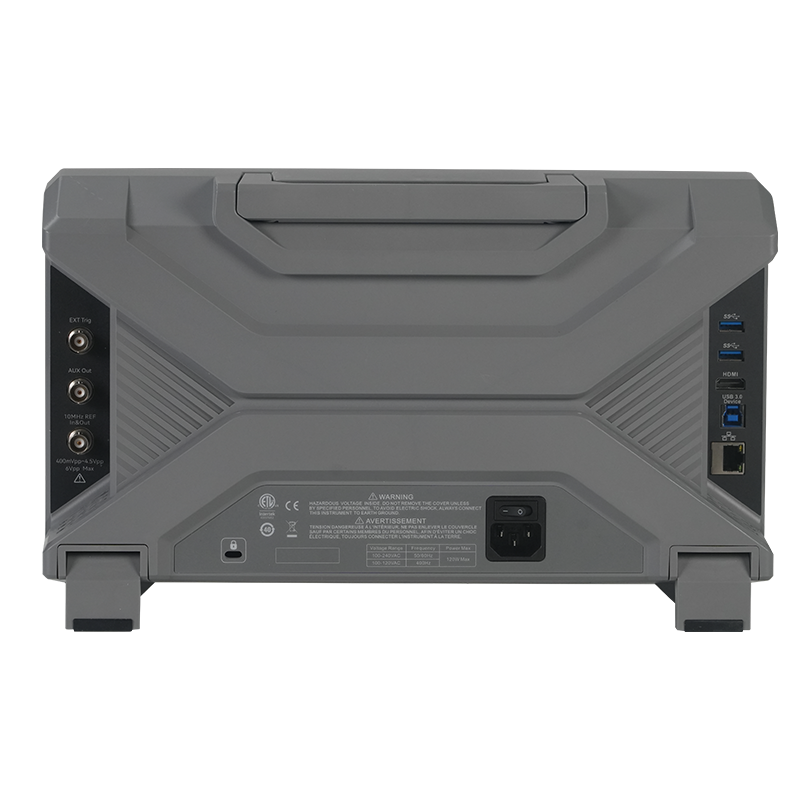

UNI-T UPO2104HD Oscilloscope

Key Specifications

• Bandwidth: Ranging from 100 MHz to 200 MHz, suitable for analyzing signals within this frequency range.
• Analog Channels: Available with either 2 or 4 channels, allowing for the simultaneous measurement of multiple signals.
• Real-time Sample Rate: Up to 2.5 GSa/s, ensuring accurate capture of high – speed signals.
• Max. Memory Depth: A deep memory of up to 100 Mpts per channel, enabling long – term signal recording and analysis.
• Waveform Capture Rate: Reaches up to 1,000,000 wfms/s, ensuring that transient signals are not missed.
• Digital Channels: N/A (not available in this series), focusing on high – performance analog signal analysis.

Distinctive Features

• Ultra Phosphor 3.0 Technology: Adopting this exclusive technology, the oscilloscope offers a waveform capture rate of up to 1,000,000 wfms/s. It also features 256 levels of gray – temperature colors, providing a more detailed and intuitive display of waveforms.
• Innovative Digital Trigger System: With high trigger sensitivity and low jitter, it can accurately capture the desired waveforms, even in complex signal environments.
• Versatile Testing Functions
  • Oscilloscope: The basic function for visualizing and measuring electrical signals, with high – resolution 16 – bit (12 – bit ADC + 4 – bit ERES) measurement accuracy.
  • Spectrum Analyzer: Equipped with a standard enhanced FFT with up to 4 Mpts for 4 – channel signal analysis. The frequency range spans from 0 to 1.25 GHz, and it provides features like waterfall curves, 4 traces, 4 detections, and various mark types (Auto, manual, and threshold) with a marker point list.
  • Protocol Analyzer: Supports 9 types of mainstream protocols, including embedded protocols (UART, I2C, SPI), automotive protocols (CAN, CAN – FD, LIN, FlexRay, SENT), and audio protocols. This allows for easy decoding and analysis of communication signals.
  • Power Analyzer: Capable of comprehensive power analysis, covering input analysis (power quality, harmonic analysis, inrush current, etc.) and output analysis (ripple analysis, power efficiency, transient response, etc.). It can measure and analyze a wide range of power – related parameters.
  • High – Precision Frequency Counter & Digital Voltmeter: Provide accurate frequency and voltage measurements as additional functions.
• Advanced Measurement and Analysis: Offers 56 types of precise parameter automatic measurements, covering multiple dimensions such as voltage, frequency, phase, and power. It also integrates advanced parameter statistics and trend – graph visualization analysis functions, facilitating in – depth understanding of signal characteristics.
• Hardware – Accelerated Mask Testing: Meets the 6σ standard (defect rate of no more than 3.4 defects per million opportunities), and with its ultra – high hardware capture rate, it can complete waveform tests that meet specific standards within 1 second, maintaining the full capture rate of Ultra Phosphor 3.0.
