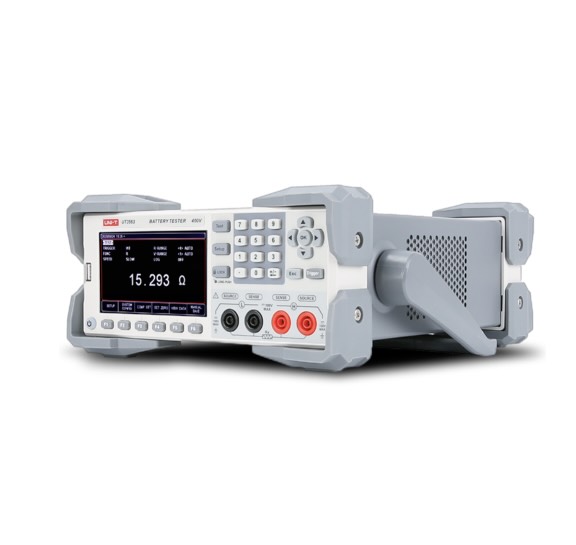

UNI-T UT3562 Battery Tester

The UNI-T UT3560 Series, featuring the UT3562 and UT3563 models, are high-precision battery internal resistance testers. They are specifically designed for a variety of demanding applications, including battery module testing, R&D measurements, high-voltage battery set tests, and high-speed assembly line testing for lithium, lead-acid, and button batteries.

Equipped with a clear 4.3-inch TFT LCD screen, these testers provide accurate and fast measurements of both battery internal resistance and voltage. The UT3560 series is an essential tool for ensuring battery quality, performance, and safety in manufacturing and research environments.

Key Features:

• Wide Measurement Range: Offers an extensive testing range with resistance from 0.0001mΩ to 3.2000kΩ and DC voltage from 0.00001V to 400.000V.
• Flexible Range Modes: Supports both automatic and manual range testing to suit different measurement needs.
• Comparator & Alarm Function: Features a comparator setting with audible alarms and a clear Hi/IN/Lo display for quick sorting of batteries based on voltage and resistance limits.

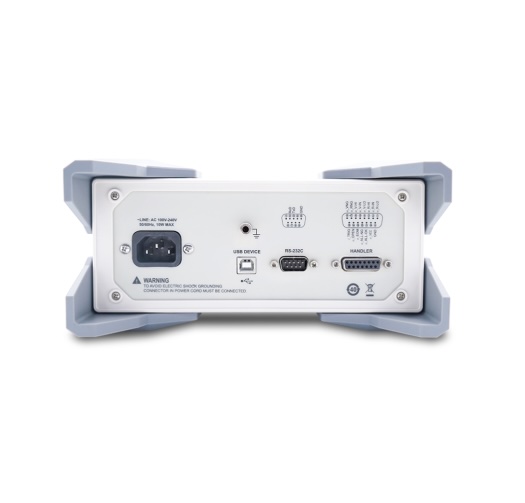

• Seamless Connectivity & Automation: Equipped with standard RS-232C, USB Device, and Handler (PLC) interfaces, making it easy to integrate into automated sorting systems and perform remote data analysis.
• Data Acquisition Software: Comes with general data acquisition software that includes a database function and allows for easy export to Excel, simplifying data logging and reporting.
