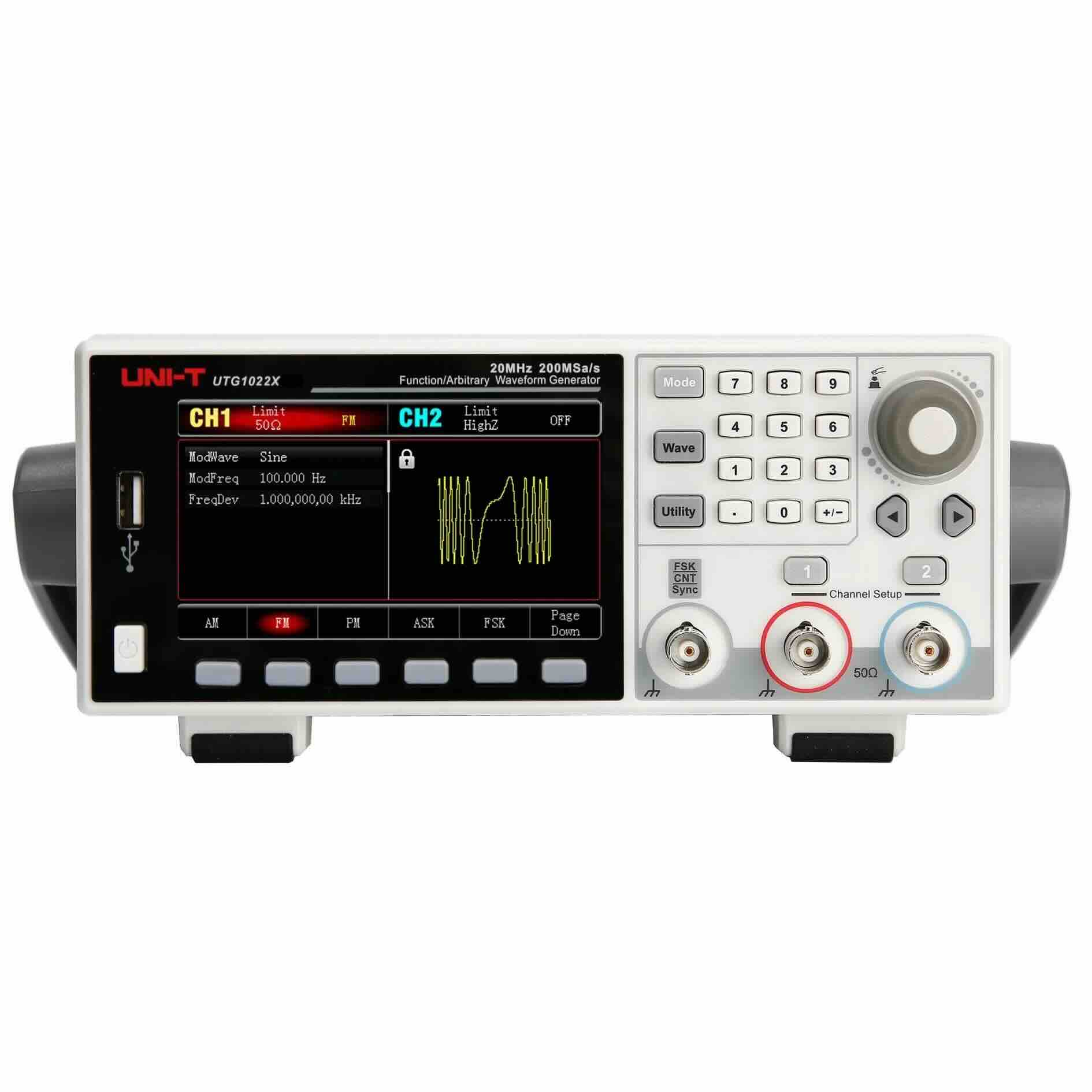

UNI-T UTG1022X-PA Waveform Generator

The UNI-T UTG1022X-PA is a versatile and high-performance arbitrary waveform generator designed for engineers, researchers, and educators seeking precision, power, and affordability. Built on the foundation of the UTG1022X, this model adds a 4W power amplifier module, making it ideal for applications requiring robust signal output. Whether for circuit testing, communication system development, or academic research, this tool delivers exceptional performance across diverse scenarios.

Key Features

1. Dual-Channel Performance with Power Amplifier
   • 20MHz Maximum Frequency: Generates stable analog and digital signals across two independent channels.

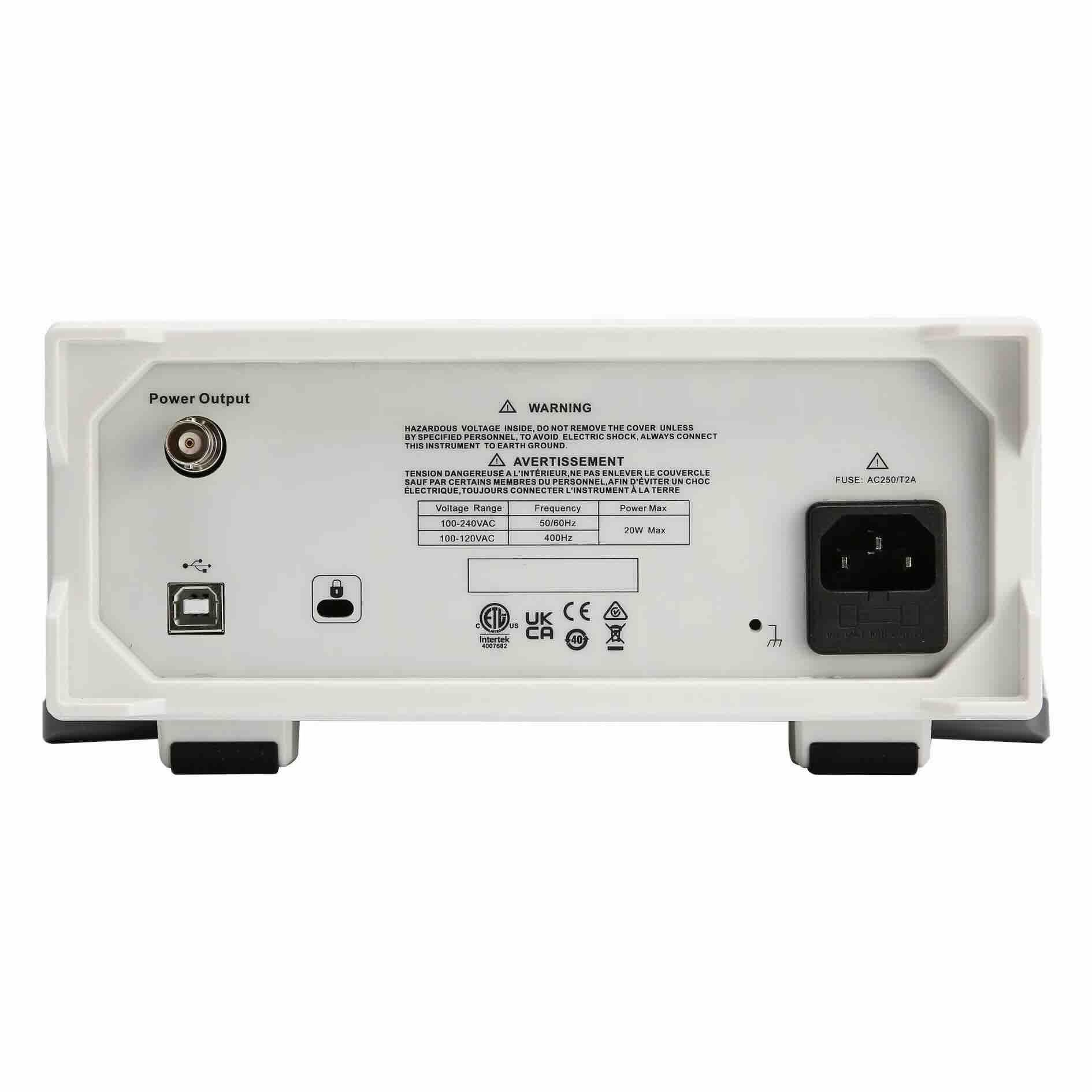

   • 4W Power Amplifier: Unique to the UTG1022X-PA, this module boosts signal strength, enabling high-power applications such as driving speakers, motors, or inductive loads.
   • 20 Vpp Output Amplitude: Delivers robust signal levels for testing in noisy environments or with high-power components.
2. Precision Waveform Generation
   • Direct Digital Synthesis (DDS): Ensures accuracy with a frequency resolution of 1μHz and low jitter (minimizing signal distortion).
   • Waveform Types: Supports sine, square, ramp, pulse, noise, DC, and arbitrary waveforms.
   • 200 Built-in Arbitrary Waveforms: Preloaded templates for quick use, editable via PC software for custom signal creation.
3. Comprehensive Modulation Capabilities
   • Analog Modulation: AM (Amplitude Modulation), FM (Frequency Modulation), PM (Phase Modulation).
   • Digital Modulation: ASK (Amplitude Shift Keying), FSK (Frequency Shift Keying), PSK (Phase Shift Keying), PWM (Pulse Width Modulation).
   • Modulation Control: Fine-tune parameters like modulation frequency (ModFreq) and frequency deviation (FreqDev) for precise signal shaping.
4. Advanced Sampling & Stability
   • 200MSa/s Sampling Rate: Captures high-frequency details with 16-bit vertical resolution for low-noise, high-fidelity outputs.
   • 35MHz Bandwidth (-3dB): Supports superposition of small signals on large DC offsets, critical for analog circuit testing.
5. Burst & Sweep Functions
   • Burst Modes:
     • N-cycle: Generates a specified number of waveform cycles.
     • Infinite: Continuous output for steady-state testing.
     • Gated: Triggered by external signals for synchronized measurements.
   • Frequency Sweep:
     • Linear/Logarithmic Modes: Smoothly transition between frequencies for component characterization (e.g., Bode plots).
     • Carrier Wave Options: Sine, square, pulse, or arbitrary waveforms for sweep profiles.
6. User-Centric Design
   • 4.3-inch TFT LCD Display: 清晰显示波形参数 (WVGA resolution, 480×277 pixels) for easy monitoring.
   • Intuitive Controls: Physical knobs and buttons for quick adjustments to frequency, amplitude, and modulation settings.

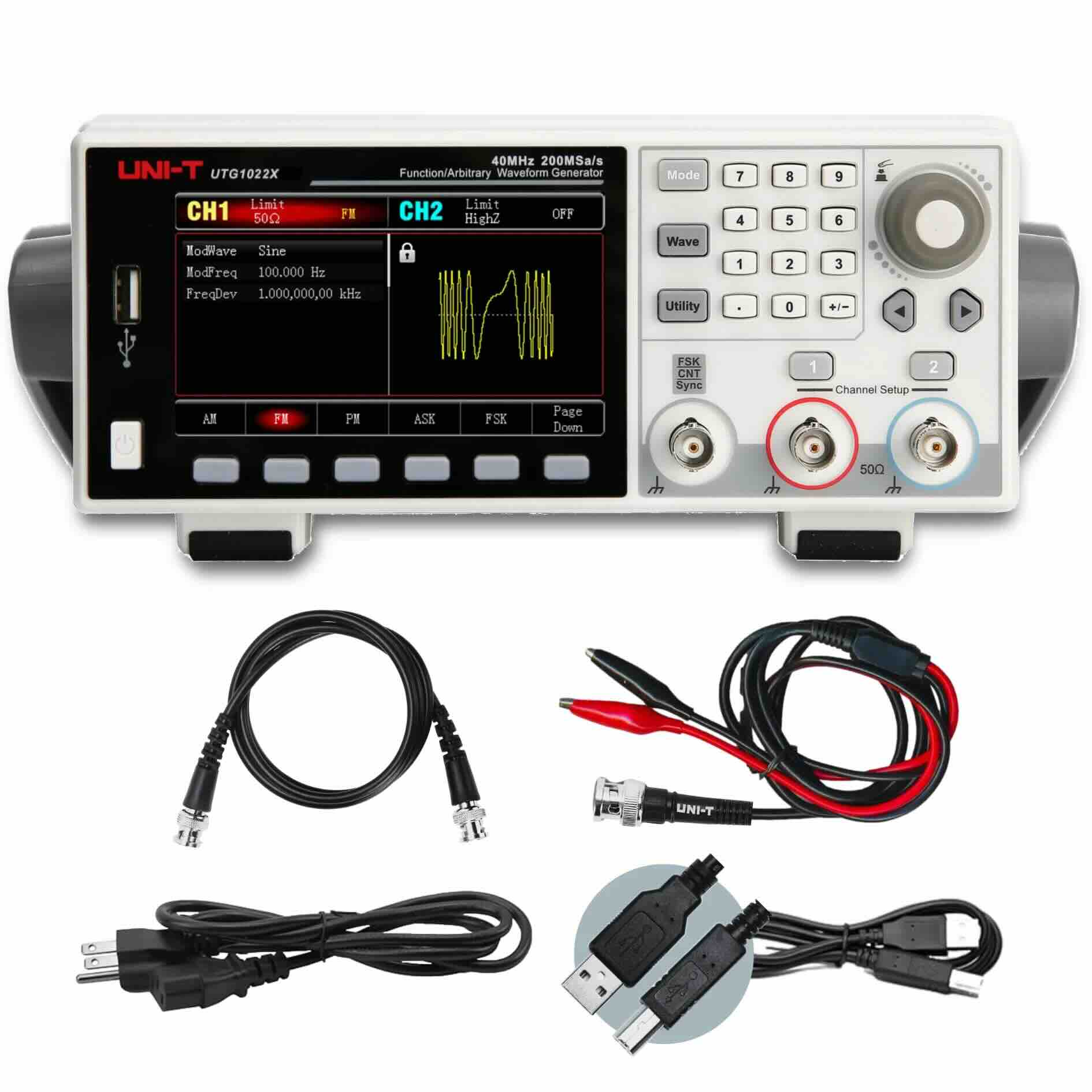

   • Standard Ports: USB Host/Device for data transfer and PC control, BNC outputs for signal connectivity.
