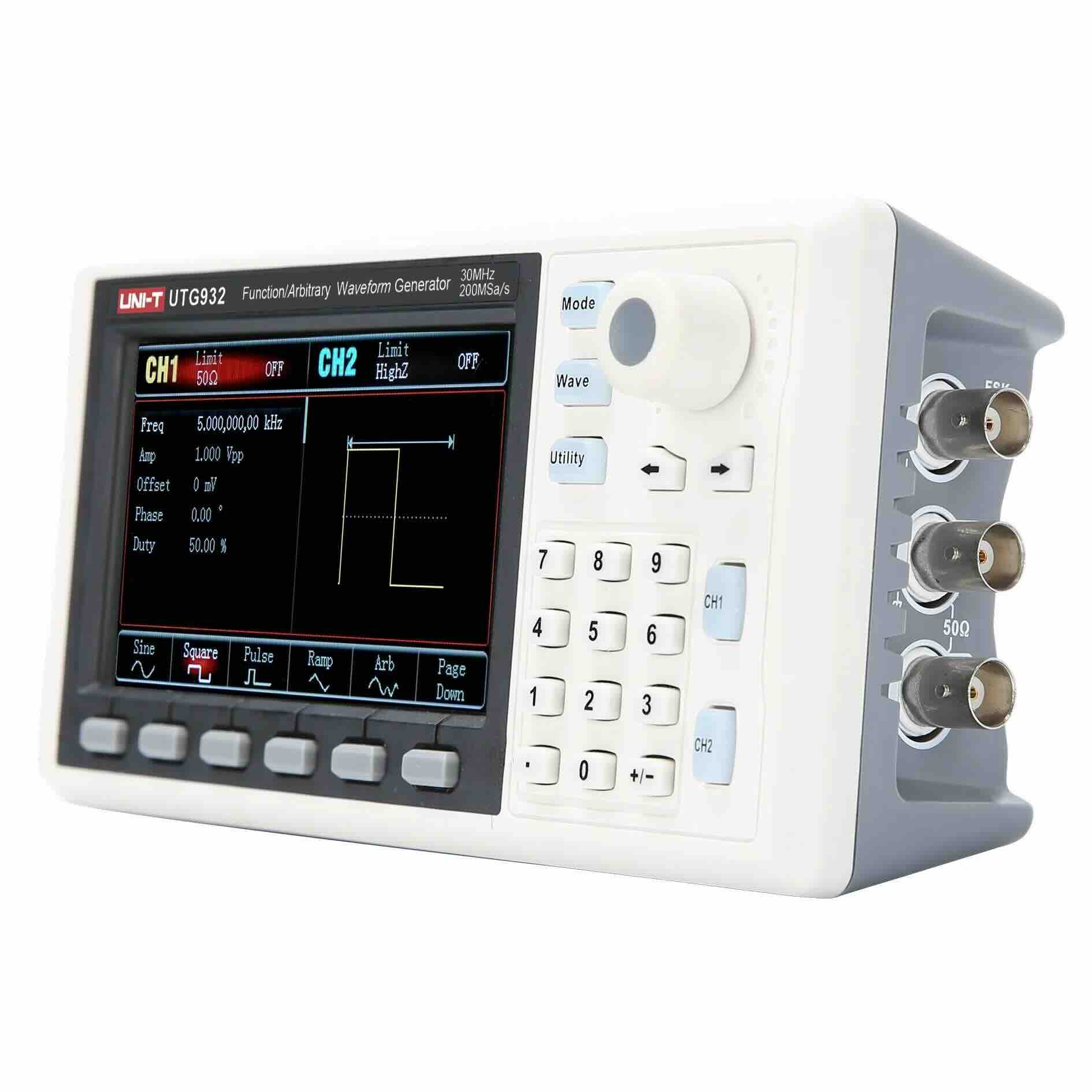

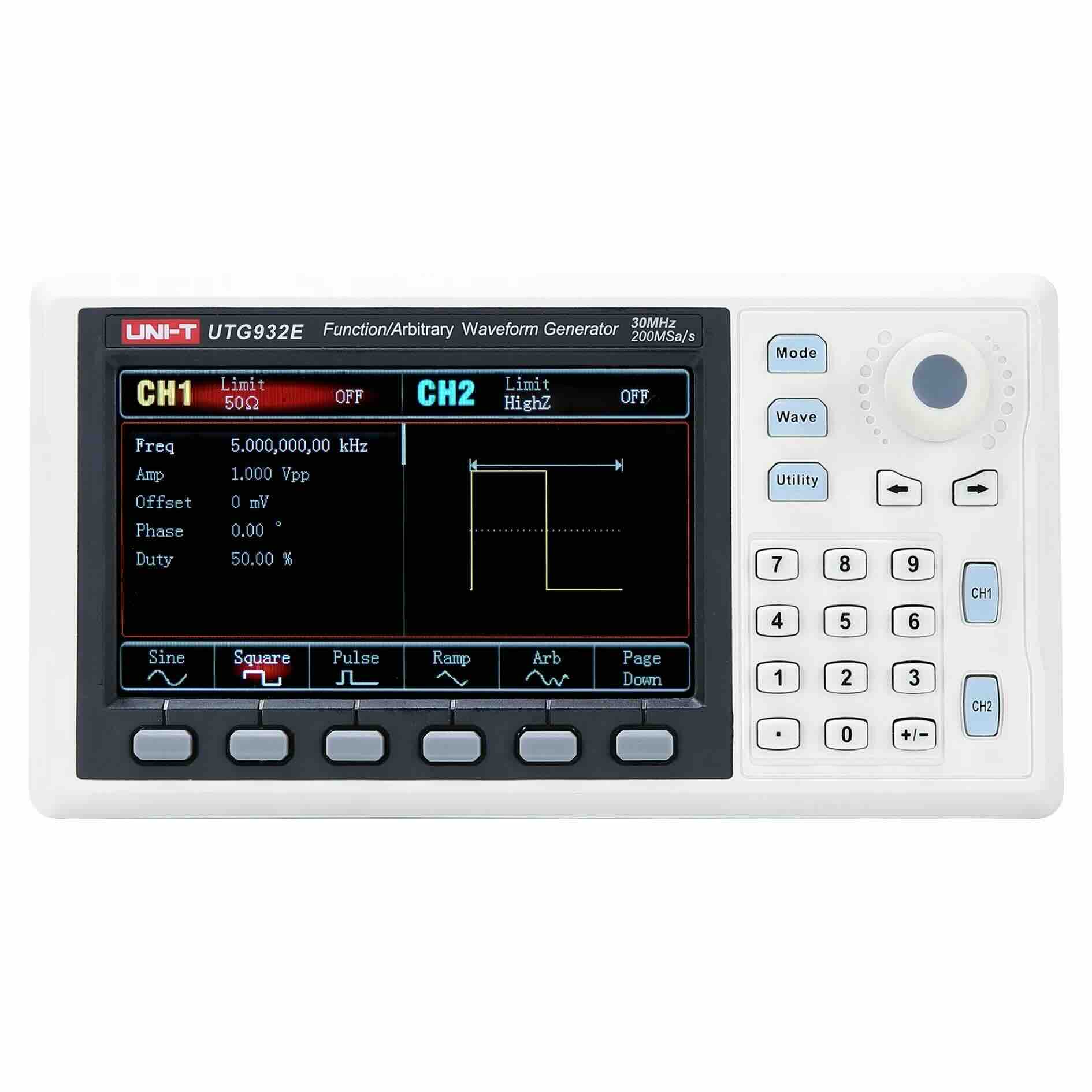

The UTG932E is a high-performance, cost-effective arbitrary waveform generator from UNI-T’s UTG900E Classic Series. Designed for portability and precision, it is an ideal tool for electronics engineers, educators, and lab technicians.
Key Features:
-
Frequency Range: 1 μHz to 30 MHz, suitable for a wide variety of testing applications
-
Sampling Rate: Up to 200 MSa/s for highly accurate signal generation
-
Vertical Resolution: 14-bit, delivering detailed and precise waveforms
-
Dual Channels: Two independent output channels for simultaneous signal output
-
Built-in Waveforms: 24 standard waveforms for quick and easy setup
-
Modulation Functions: Supports AM, FM, PM, and FSK for versatile signal modulation
-
Sweep Function: Includes linear and logarithmic sweep modes
-
Display: 4.3-inch TFT LCD screen for intuitive visual control
-
Interfaces: USB and Sync ports for convenient external connectivity
-
Certifications: Complies with cETLus, CE, RoHS, and UKCA standards for safety and quality assurance
| Feature | Specification |
|---|---|
| Model Number | UTG932E |
| Channels | 2Ch |
| Memory Depth | 4kpts |
| Frequency | 30MHz |
| Square/Pulse (Hz) | 15MHz |
| Vertical Resolution | 14 Bits |
| Waveforms | Sine Square Ramp Pulse Noise DC Arbitrary |
| # Built-in Arbs | 24 |
| Modulation Types | AM FM FSK PM |
| Sweep Modes | Linear Logarithmic |
| Frequency Counter | 100mHz – 100MHz |
| Display Size (in) | 4.3in |
| Touchscreen | No |
| Warranty | 3 years |
| Product Dimensions (L x W x H) | 7 in x 3 in x 4 in |
| Product Weight | 1 lb |
| Certifications | CE/cETLus/UKCA |
| Documents | English download guide |

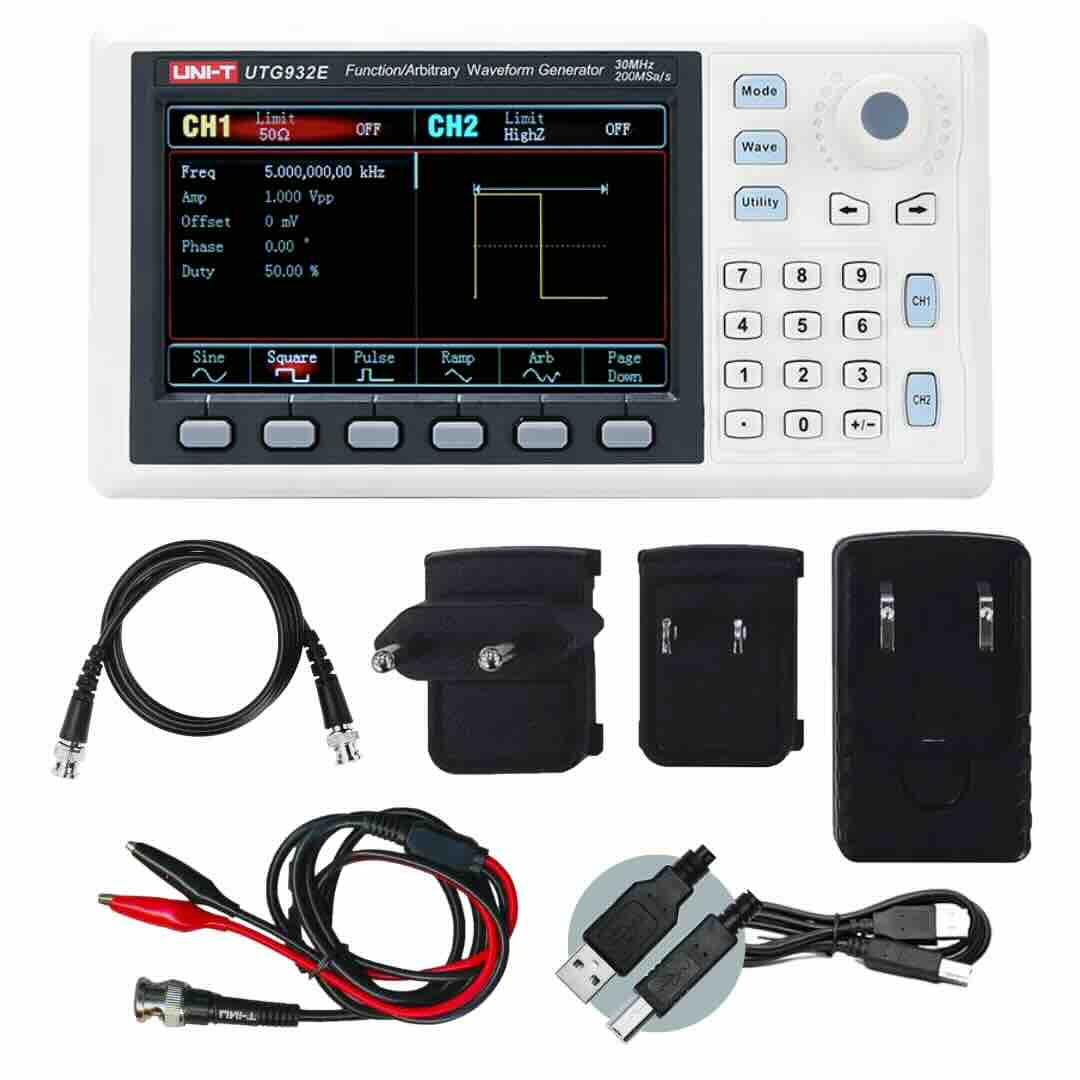

| Included Accessories | Power adapter (5V/2A, including UL, CE adapter), USB to DC power cord |
| Standard Accessories | BNC straight-through cable, BNC to alligator clip cable |
