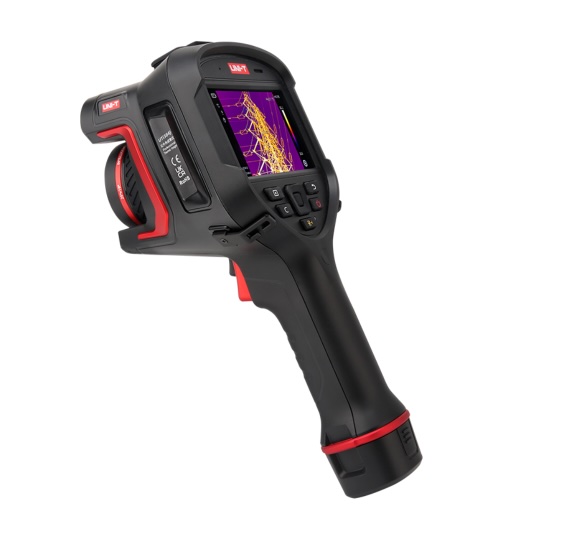

UNI-T UTi384J Intelligent Thermal Camera

The UNI-T UTI384J is an intelligent, high-performance industrial thermal camera designed for professional diagnostics. It features a high-sensitivity 384×288 IR detector, which can be enhanced to 768×576 using its Super Resolution function for outstanding image detail. Key innovations include its interchangeable lens system (macro, wide-angle, telephoto) for application versatility and an advanced focusing system with four modes, including continuous autofocus. The ergonomic “hammer” design, combined with a large 4.3″ touchscreen, 8MP visual camera, and a smooth 30Hz frame rate, makes the UTI384J a powerful and adaptable tool for predictive maintenance, electrical inspections, and scientific research.

Key Features

• High-Definition Thermal Imaging: A 384×288 pixel, 12μm infrared detector with high thermal sensitivity (≤40mK) ensures detailed and clear thermal images.
• Super Resolution Enhancement: Onboard image processing upgrades the thermal resolution to 768×576, revealing even finer temperature details.

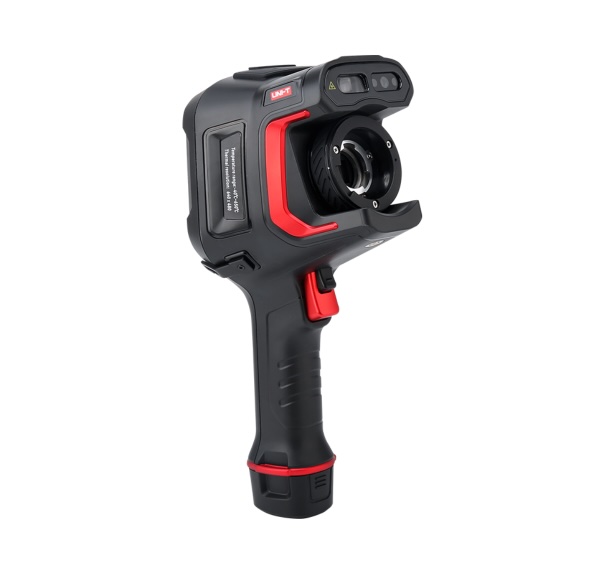

• Interchangeable Lens System: Supports multiple optional lenses (wide-angle, telephoto, high-temp) that are automatically recognized, providing flexibility for various measurement scenarios.
• Advanced Focusing System: Offers four focus modes—Manual, Automatic, Touch Autofocus, and Continuous Autofocus—for consistently sharp images.
• Rich Onboard Analysis Tools: Features extensive on-screen analysis (10 points/lines/areas), panoramic image stitching, dual-light video recording, and laser rangefinder (LRF) capabilities.
• Industrial Ergonomics & Durability: A robust “hammer” design with an IP54 rating and 2m drop resistance, built for demanding field environments.
• Full Connectivity and Annotation: Includes Wi-Fi live streaming, Bluetooth, and allows for image, text, and voice annotations directly on saved images for comprehensive reporting.
